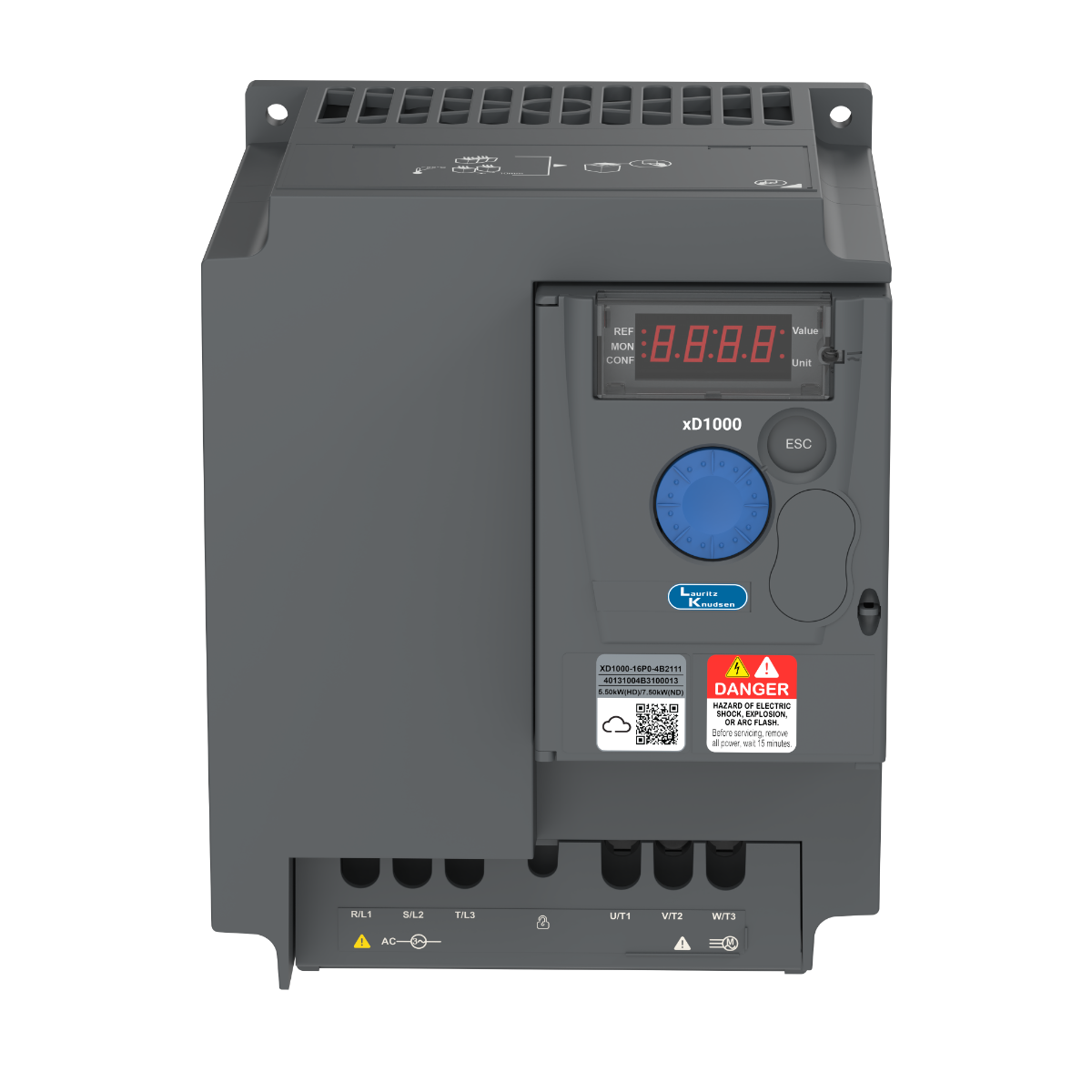

xD1000 Series 415V Drive 4.00kW(HD)/5.50kW(ND)
Share
In stock
SKU
XD1000-12P1-4B2111
₹45,000.00
( Prices are all inclusive of taxes )xD1000 Series 415V Drive 4.00kW(HD)/5.50kW(ND)
CHECK DELIVERY TIME & COD AVAILABILITY
The xD1000 Drive is a compact yet robust variable frequency drive (VFD) designed to meet the needs of various general-purpose applications such as pump, fan, conveyor & compressors cutting across Industry & Building segments. It is also capable to handle machine applications like F&B machines, packaging machines, woodworking machines, textile machines, special purpose machines etc. It offers a user-friendly interface that simplifies installation and operation, making it accessible for both experienced and novice users.
Standard features
- Rated @ 55 degC (HD), @ 50 deg C (ND)
- Transient overtorque 170%~200%
- 4DIs, 2DOs,1AI, 1AO
- Inbuilt PID with 4 Preset PID references, Sleep & Wakeup, Predictive speed
- Auxiliary Pump control
- Catch on the Fly
- Skip Frequency
- Automatic Restart
- Current Limitation
- 8 preset speeds
- Auto restart
- Cooling fan control
- Fast stop ramp divider
Application & Segments
- Pump, Fan, Conveyor & Compressor
- Building HVAC loads – AHU, cooling tower fans & pumps, compressors, HVLS fans
- Ceramic machine - Conveyors
- Material handling – Long Travel, Cross Travel, Conveyors
- F&B machines
- Packaging machine
- Wood working machine
- Textile machine
- Machine tools
- Special purpose machine
- Washing machine
-
Rated Input Voltage3 P 380-460 Vac
-
CommunicationModbus RS 485
-
Warranty1 Year
-
Display & ResolutionSingle Line LED - 4 Digit
-
Operational Frequency (Hz)50/60Hz
-
IP ProtectionIP 20
-
Ambient temperatureHD : -10 – +55 °C without derating ND : -10 – +50 °C without derating
-
Heavy Duty Output (kW)4.00kW
-
Normal Duty Output kW5.5
-
Rated Output Current (HD)9.5A
-
Rated Output Current (ND)12.1
-
Overloading Capacity (HD)Continuous current with 150% overload for 60 secs.
-
Overloading Capacity (ND)Continuous current with 110% overload for 60 secs.
-
Built-In Keypad4 digit, 7 segment LED
-
Inputs/Outputs4DIs, 2DOs,1AI, 1AO
-
Control MethodV/F, Slip Compensation, V/F - Energy Saving, Quadratic V/F, Sensorless Vector Control (SVC)
-
Max Output Frequency400Hz
-
CertificationsCE, RoHS
-
Compliance standardsIEC 61800-3 IEC 61800-5-1 IEC 60721-8
-
PCB ProtectionConformal coating class 3S2 for Dust and class 3C3 for Chemical pollution, complying to IEC 60721-3-8
-
Height(mm)140.0
-
Width(mm)184.0
-
Depth(mm)151.0
