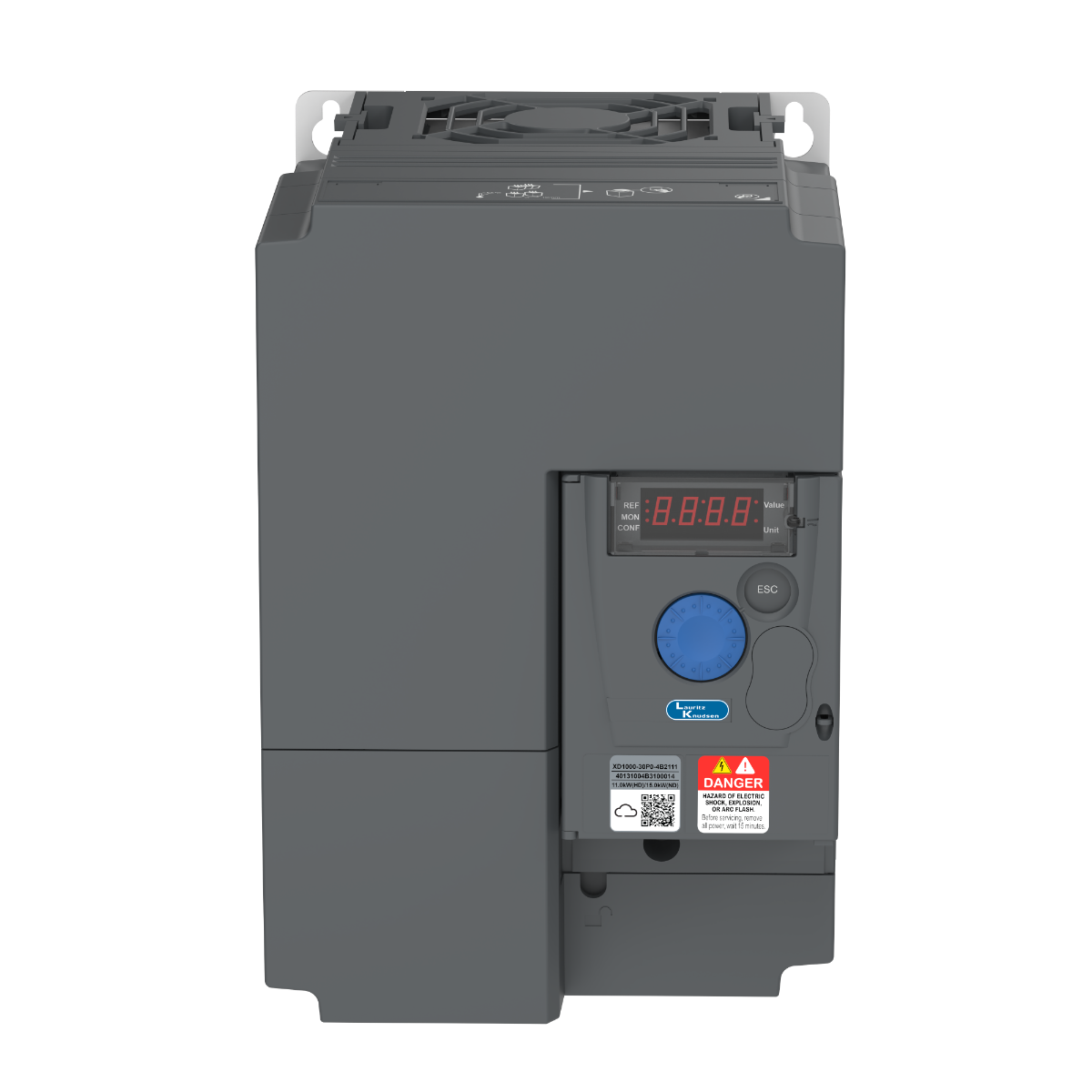

Lauritz Knudsen xD1000 Series 415V Drive 7.50kW(HD)/11.0kW(ND) | Auto Restart | Torque boost | Cooling Fan Control
SKU :
XD1000-22P8-4B2111
New Launch
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
XD1000-22P8-4B2111
Lauritz Knudsen xD1000 Series 415V Drive 7.50kW(HD)/11.0kW(ND) | Auto Restart | Torque boost | Cooling Fan Control
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹68,000.00
₹28,036.80
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
The seller will ship your order according to their stated lead times. For details or more accurate estimates, please contact the seller.
Estimated delivery:
Out of stock
Lauritz Knudsen xD1000 Series 415V Drive 7.50kW(HD)/11.0kW(ND) | Auto Restart | Torque boost | Cooling Fan Control
₹68,000.00
₹28,036.80
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
literature section Download Getting Started Guide Lauritz Knudsen The xD1000 Drive is a compact yet robust variable frequency drive (VFD) designed to meet the needs of various general-purpose applications such as pump, fan, conveyor & compressors cutting across Industry & Building segments. It is also capable to handle machine applications like F&B machines, packaging machines, woodworking machines, textile machines, special purpose machines etc. It offers a user-friendly interface that simplifies installation and operation, making it accessible for both experienced and novice users.
Standard features
- Rated @ 55 degC (HD), @ 50 deg C (ND)
- Transient overtorque 170%~200%
- 4DIs, 2DOs,1AI, 1AO
- Inbuilt PID with 4 Preset PID references, Sleep & Wakeup, Predictive speed
- Auxiliary Pump control
- Catch on the Fly
- Skip Frequency
- Automatic Restart
- Current Limitation
- 8 preset speeds
- Auto restart
- Cooling fan control
- Fast stop ramp divider
Application & Segments
- Pump, Fan, Conveyor & Compressor
- Building HVAC loads - AHU, cooling tower fans & pumps, compressors, HVLS fans
- Ceramic machine - Conveyors
- Material handling - Long Travel, Cross Travel, Conveyors
- F&B machines
- Packaging machine
- Wood working machine
- Textile machine
- Machine tools
- Special purpose machine
- Washing machine
Overview
| Rated Input Voltage | 3 P 380-460 Vac |
|---|---|
| Communication | Modbus RS 485 |
| Warranty | 1 Year |
| Display & Resolution | Single Line LED - 4 Digit |
| Operational Frequency (Hz) | 50/60Hz |
| IP Protection | IP 20 |
| Ambient temperature | HD : -10 – +55 °C without derating ND : -10 – +50 °C without derating |
| Heavy Duty Output (kW) | 7.50kW |
| Normal Duty Output kW | 11 |
| Rated Output Current (HD) | 17A |
| Rated Output Current (ND) | 22.8 |
| Overloading Capacity (HD) | Continuous current with 150% overload for 60 secs. |
| Overloading Capacity (ND) | Continuous current with 110% overload for 60 secs. |
| Built-In Keypad | 4 digit, 7 segment LED |
| Inputs/Outputs | 4DIs, 2DOs,1AI, 1AO |
| Control Method | V/F, Slip Compensation, V/F - Energy Saving, Quadratic V/F, Sensorless Vector Control (SVC) |
| Max Output Frequency | 400Hz |
| Certifications | CE, RoHS |
| Compliance standards | IEC 61800-3 IEC 61800-5-1 IEC 60721-10 |
| PCB Protection | Conformal coating class 3S2 for Dust and class 3C3 for Chemical pollution, complying to IEC 60721-3-10 |
| Height(mm) | 150.0 |
| Width(mm) | 232.0 |
| Depth(mm) | 171.0 |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects...
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
