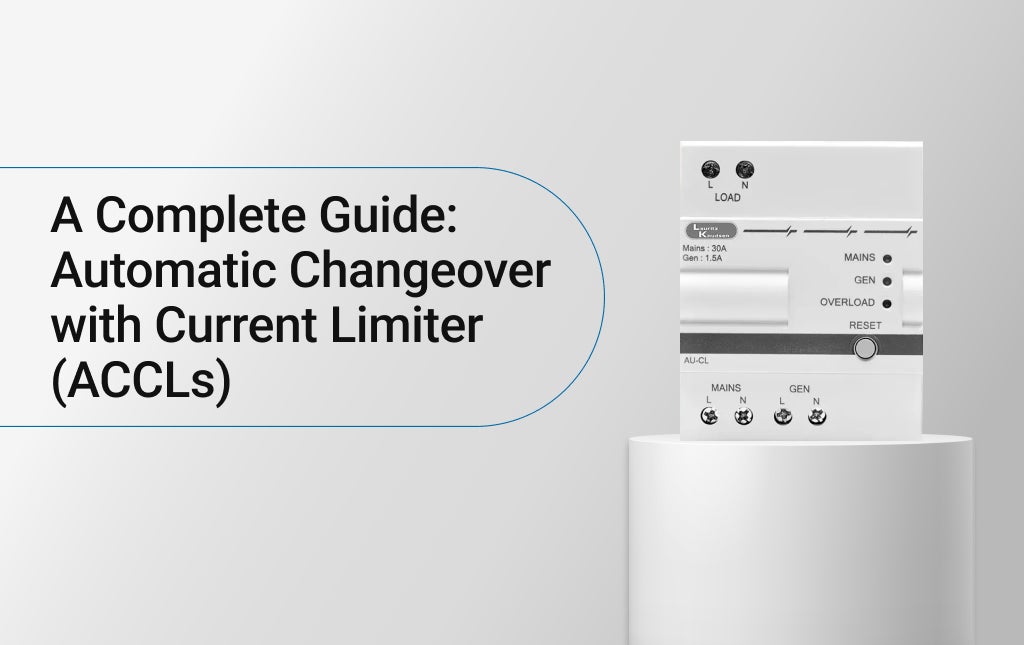

A Complete Guide: Automatic Changeover with Current Limiter (ACCLs)

In many buildings, power cuts or fluctuations are a daily challenge. Keeping lights, fans, and essential systems running requires smooth switching between main power and backup generators. This is where Automatic Changeover with Current Limiter, or ACCL, comes in. Understanding what is ACCL, its function, and how it works helps in ensuring stable and safe power use across homes, offices, and industries.

What is ACCL?

The ACCL full form is Automatic Changeover with Current Limiter. It is an intelligent electrical device that automatically shifts the power source from the main supply to the generator during a power failure. Once the main supply returns, it switches back without any manual effort.

Unlike ordinary changeover switches, ACCLs also limit the current drawn from the generator. This prevents overloading and helps the generator run efficiently during backup operation.

So, what is ACCL In electrical systems? The ACCL acts like a bridge between two power sources - the main grid and the generator. When grid power fails, the ACCL switch automatically senses the loss and connects the generator supply. It also controls how much current each connected load can draw. This feature ensures that the total load does not exceed the generator’s rated capacity.

Such control keeps the generator from tripping or getting damaged during peak load times. It also helps divide power fairly among all connected users, which is essential in multi-apartment buildings and large offices.

ACCL Working Principle

The ACCL working principle revolves around automatic sensing, switching, and current control. Inside the unit, a sensing circuit monitors the availability of mains power. When voltage drops or fails, the ACCL’s logic circuit disconnects the mains and connects the generator line.

Once the main supply returns, it again switches back after a short delay to avoid fluctuations. At the same time, the current limiter checks the load current. If it crosses the set value, the ACCL switch temporarily cuts the supply until the overload is removed.

This process protects both the wiring and the generator from stress, ensuring longer service life and safe operation.

1. Power Supply Monitoring

The ACCL constantly checks the voltage level from the main power line. When everything runs normally, it keeps the load connected to the mains. If the voltage drops below the safe limit or goes off completely, the sensing circuit detects the fault within seconds.

This continuous monitoring is the first step that prepares the device for automatic switching whenever the main supply fails.

2. Automatic Source Transfer

Once the ACCL senses a power failure, it instantly disconnects the mains line and connects the generator output. The built-in logic circuit sends a command to change the source, and the internal contactors make the transfer smoothly.

When the main supply returns, the process reverses. The ACCL shifts the load back to the grid after a short delay to prevent sudden voltage spikes or fluctuations.

3. Current Limiting During Generator Mode

During generator operation, the ACCL acts as a current controller. It checks how much current each connected circuit is drawing. If the load crosses the set limit, The device trips momentarily to protect the generator from overload. After the excess load is removed, it reconnects the circuit automatically.This feature keeps the generator safe and helps in maintaining stable voltage during power backup.

4. Restoration and Delay Mechanism

After the main power returns, the ACCL doesn’t switch back instantly. It waits for a few seconds. This delay is built into the system. It ensures voltage stability. It reconnects to the main supply and disconnects the generator once the voltage is ready. This small delay prevents unnecessary switching and extends the life of both the generator and the ACCL.

ACCL Function

The main ACCL function is two fold:

1. Automatic changeover between main and generator power.

2. Limiting current flow during generator operation.

This means even if multiple high-power appliances are switched on together, the ACCL maintains control. It supplies power only within the generator’s safe current limit.

It also provides protection against short circuits, over-voltage, and phase failure. By combining these safety features, the device reduces manual intervention and improves overall reliability of the electrical system.

How Does ACCL Work

To understand how does ACCL works, imagine a typical power setup in a commercial building. When the main power supply is available, the ACCL connects all loads to it. The moment power fails, it detects the loss and activates the generator circuit.

After a few seconds, the generator starts supplying electricity through the same ACCL. The device then limits the current according to preset values. For example, if the limit is 10A per flat, it cuts power once that level is crossed.

When the main power returns, it automatically transfers the load back to the grid. All this happens quietly and without needing an operator.

When normal power is available

Most of the time, nothing unusual is happening. Power comes from the grid and flows as it normally would. The ACCL is present, but it doesn’t interfere. It simply stays connected in the background, allowing everyday electrical use to continue without anyone noticing or needing to operate anything manually.

When the main supply suddenly goes off

At some point, the power may drop or fail completely. When that happens, the ACCL notices the absence almost immediately. There’s no alarm or visible action. It just recognises that the usual supply isn’t there anymore and prepares for the next step without waiting for instructions.

When the generator comes into use

After the main supply is gone, the generator starts up and begins feeding power through the same path. The ACCL allows this change to happen smoothly. From the user’s side, lights and basic systems come back on, often without anyone needing to check switches or panels.

How current is kept under control

While running on generator power, the ACCL quietly watches how much electricity is being used. Limits are already set. If usage crosses those limits, supply is reduced or cut. This helps avoid overloads and keeps the generator running steadily instead of being pushed beyond its capacity.

When grid power returns

Once the main supply comes back, the ACCL senses it again. The system slowly shifts everything back to normal power. The generator steps out of use. This change happens automatically, without noise or manual action, returning the setup to how it usually operates.

Types of Automatic Changeover with Current Limiter

Different models of automatic changeover with current limiter are available depending on installation needs.

1. Single Phase ACCL: Used for residential setups and small shops. It handles limited current and is easy to install. Single phase ACCL units are mostly seen in homes, small offices, and local shops. They are meant for simple loads like lights, fans, and a few appliances. Since power use stays fairly predictable, these units don’t need complex settings. Once installed, they usually run quietly without needing regular adjustment.

2. Three Phase ACCL: Designed for industrial or commercial areas where higher loads are present. It manages three-phase supplies efficiently. Three phase ACCL systems are chosen when loads are heavier and spread across multiple phases. Factories, commercial buildings, and larger facilities rely on them to keep power balanced. These units help prevent uneven loading when generators are running, which reduces stress on equipment and avoids unnecessary shutdowns during outages.

3. Manual-Auto ACCL: Offers both automatic and manual switching options, allowing flexibility during maintenance or testing. Manual-auto ACCL units are used where flexibility matters. Under normal conditions, they work automatically. But during maintenance or testing, technicians prefer manual control. This avoids surprises during inspections and makes troubleshooting easier, especially in places where switching power sources needs to be carefully managed.

Every type follows the same principle - maintain continuity of power and protect the generator from overload.

Changeover Switch vs ACCL

A Changeover Switch is a basic device that shifts the load from mains to generator manually. It does not limit current or offer automatic transfer. The operator must physically turn it whenever the main supply fails or returns.

An ACCL, on the other hand, performs the same changeover automatically and adds current-limiting control. This makes it a more advanced and safer alternative to a traditional Changeover Switch.

Advantages of ACCL

• Automatic operation: No manual effort needed during power failure. Most people like ACCL because nothing needs to be done during a power cut. When electricity goes off, the system responds on its own. There’s no running to panels or waiting for someone technical. Things just shift quietly, which feels reassuring, especially during unexpected outages.

• Current control: Prevents overload and protects the generator. During generator operation, power is limited for a reason. ACCL keeps usage in check so nothing draws more than it should. This avoids sudden overloads. People usually don’t notice it working, but it prevents the generator from struggling or shutting down at the worst possible moment.

• System safety: Guards against voltage and current spikes. Power returning suddenly can cause problems. ACCL helps smooth out those changes. It controls how power flows during switching so cables and devices are not shocked by sudden spikes. This doesn’t feel dramatic when it works, but it reduces small risks building up over time.

• Longer equipment life: Reduces wear on cables and machines. When electricity behaves more steadily, machines tend to suffer less. ACCL reduces unnecessary stress during switching and backup use. Over months and years, this means fewer breakdowns. Most users notice it indirectly, through equipment that simply keeps working without frequent electrical issues.

• Convenience: Restores power in seconds after a failure. From a daily-use perspective, ACCL just removes effort. Power comes back quickly after a failure, and essential things continue running. People don’t need to think about timing or limits. It’s one of those systems you appreciate more when you realize you haven’t had to manage it at all.

These features make ACCLs suitable for both homes and large facilities.

Applications of ACCL

ACCLs are used anywhere uninterrupted power is required.

Common examples include:

• Residential complexes and apartments.

• Hospitals and data centers.

• Industrial and commercial buildings.

• Schools, hotels, and communication hubs.

In each case, the ACCL manages both switching and current limitation for steady operation.

ACCL Price

The ACCL price depends on capacity, phase type, and brand. Small residential models are usually affordable. On the other hand, industrial three-phase units cost more due to higher current ratings and protection features. Even though the cost varies, the savings from reduced downtime and equipment protection often outweigh the investment.

Installation and Maintenance

ACCL installation should be handled by qualified electricians. Proper wiring between the mains, generator, and load is critical. Loose or wrong connections can lead to false tripping or equipment damage.

Regular testing is also essential. The load limit settings and voltage sensing need to be verified at intervals to ensure consistent performance.

Getting the ACCL installed the right way

Most people don’t install an ACCL themselves, and that’s a good thing. The unit needs clean, correct wiring between the mains supply, generator, and load side. When this part is rushed or handled casually, problems show up later during outages. A careful installation at the start avoids repeated headaches afterward.

Why wiring details matter more than expected

Even when everything looks connected, small issues like loose terminals or mixed-up sensing wires can confuse the system. The ACCL may trip unexpectedly or react slower than it should. Electricians usually take extra time here because once the panel is closed, fixing wiring mistakes becomes inconvenient and disruptive.

Testing after installation

Once power is connected, testing feels like a formality. But it isn’t. Simulating a power cut helps confirm the ACCL switches correctly and respects current limits. Many issues only appear during this stage. Catching them early prevents awkward situations when a real outage happens unexpectedly.

Routine checks over time

ACCL systems don’t need daily attention, but ignoring them completely isn’t ideal either. Over time, dust, heat, or vibration can loosen connections. Occasional inspection keeps things predictable. Most users never notice these checks, but they help ensure the system behaves normally when it’s suddenly needed.

Adjusting settings when usage changes

Power needs don’t stay the same forever. Adding equipment or changing load patterns can affect how the ACCL behaves. Revisiting current limits and sensing settings once in a while keeps everything balanced. This small adjustment step often prevents overload complaints during generator operation.

Also Read: What is a Changeover Switch and Its Function?

Conclusion

The Automatic Changeover with Current Limiter is a smart and reliable device that manages power sources efficiently. Knowing what is ACCL, its function, and how does ACCL works helps in designing safer and more efficient power systems.

It combines the function of an automatic Changeover Switch with added current control, protecting both the generator and connected loads. From homes to large buildings, ACCLs are becoming the standard solution for uninterrupted and controlled power supply.

FAQ

Q1. What is the main purpose of ACCL in power systems?

Ans. Most people see ACCL as a way to avoid chaos during power cuts. Instead of someone manually switching supplies or guessing load limits, the system quietly handles it. Its real purpose is convenience mixed with control, making sure backup power doesn’t turn into another problem.

Q2. Why is current limiting important in generator systems?

Ans. Generators can only handle so much at one time. Without limits, people tend to use power normally, forgetting it’s on backup. Current limiting steps in to prevent that habit from causing trouble. It keeps things running instead of letting everything collapse under excess load.

Q3. Can ACCL improve generator lifespan?

Ans. It doesn’t magically extend lifespan, but it helps. When generators aren’t pushed too hard or overloaded repeatedly, they age more gently. ACCL reduces sudden stress, which often leads to fewer breakdowns. Over time, that difference becomes noticeable in maintenance frequency.

Q4. How reliable is an Automatic Changeover with Current Limiter?

Ans. Reliability mostly comes from simplicity. ACCL systems don’t rely on complex logic or constant user input. Once installed properly, they usually work quietly in the background. Most failures happen due to wiring issues, not because the system itself is unreliable.

Q5. Does ACCL protect against generator overload?

Ans. Yes, but in a practical way. Instead of dramatic shutdowns, it quietly cuts excess usage before things go wrong. People may notice a load dropping, but the generator stays stable. This is usually better than dealing with a full power failure during backup operation.
