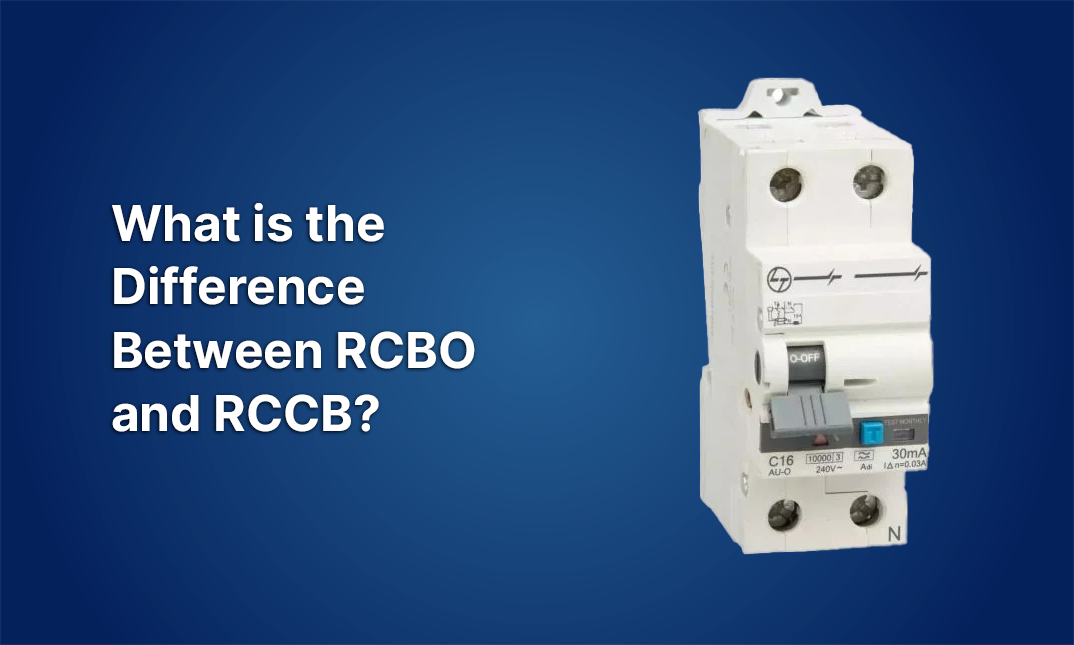

What is the Difference Between RCBO and RCCB?

What is the Difference Between RCBO and RCCB?

Security against electrical hazards presents an essential challenge throughout houses, workplaces, and industrial settings. The protection of safety functions through two essential devices include Residual Current Circuit Breakers (RCCB) and Residual Current Breaker with Overcurrent (RCBO). The protective devices help stop electrical shocks while preventing fire hazards that emerge from leakage currents. Both devices operate with different protection objectives.

The following blog presents a comparison between RCCB and RCBO protective devices alongside their functional benefits, drawbacks, and usage details. The article examines RCCB and RCBO as established security products within electrical protection systems.

What is RCCB?

A Residual Current Circuit Breaker (RCCB)operates as a protective device that automatically shuts off a circuit when it detects earth faults along with leakage currents. The protective mechanism of RCCB does not operate against overcurrent events, including short circuits and overloads. The protection mechanism of RCCB responds to accidental electrical leakage by disconnecting the power supply to avoid electric shocks.

RCCB Advantages and Disadvantages

Advantages of RCCB

  • Electric shocks are prevented because this device detects leakage current and interrupts the power supply before electrocution can take place.

  • Fire safety protection comes from RCCB devices, which cut off leakage currents that create potential hazards.

  • RCCB offers advanced sensitivity because it works with leakage current detection reaching down to 30 milliamperes, thus maintaining user safety.

  • Easy to Install – Works with existing circuit breakers without modifications.

  • RCCBs operate without manual intervention because users can reactivate the system after addressing the problem.

Disadvantages of RCCB

  • The device detects only leakage current but does not offer protection against short circuits and overload events.

  • RCCBs tend to cause disturbances in electrical supply due to small leaking currents.

  • Compared to MCBs, the cost of RCCBs remains higher because they supply extra safety features.

  • This protection system cannot offer full coverage against short circuits and overloading, which affect three or more phases within electrical systems.

What is RCBO?

The equipment called RCBO (Residual Current Breaker with Overcurrent) provides two protection functions by combining RCCB technology with MCB technology. With this dual functionality, RCBO serves the purpose of MCB along with RCCB operation.

RCBO Advantages and Disadvantages

Advantages of RCBO

  • Dual Protection Provides protection against both leakage currents and overcurrents (short circuits & overloads).

  • The device protects users from fatal electrocutions and fire risks originating from increased electrical current.

  • Different circuits benefit from their own RCBO, which stops power loss in all circuits.

  • The compact form allows the distribution board to save space due to its dual-function operations within one unit.

  • The device provides a superior solution against nuisance tripping because it detects faults with increased precision compared to RCCBs.

Disadvantages of RCBO

  • The price tag for an RCBO exceeds the combined cost of RCCB and MCB units.

  • Complex Installation Requires additional wiring and proper calibration.

  • Circuit safety needs of small residential spaces sometimes benefit from combining both RCCB and MCB units instead of getting RCBO devices.

Difference Between RCCB and RCBO

Feature

RCCB (Residual Current Circuit Breaker)

RCBO (Residual Current Breaker with Overcurrent)

Functionality

Detects and disconnects leakage current (earth faults)

Protects against leakage current, overload, and short circuits

Overcurrent Protection

No

Yes

Short Circuit Protection

No

Yes

Use Case

Suitable for circuits where overload protection is managed separately

Ideal for circuits that need both leakage and overcurrent protection

Nuisance Tripping

Higher possibility

Less possibility due to advanced detection

Cost

Lower than RCBO

Higher than RCCB

Best For

Residential and basic electrical safety

Industrial, commercial, and critical home circuits

Lauritz Knudsen Electrical & Automation RCCB and RCBO: Reliable Electrical Safety Solutions

Lauritz Knudsen Electrical & Automation is a well-known brand offering high-quality electrical safety devices. Both RCCB and RCBO are popular choices in homes and industries due to their reliability.

RCCB Features

  • Available in 2-pole and 4-pole configurations.

  • Sensitivity ranges from 30mA to 300mA.

  • Ensures protection against electric shocks.

  • Quick response time to leakage currents.

  • Widely used in residential and commercial applications.

RCBO Features

  • Provides both earth leakage and overcurrent protection.

  • Available in single-phase and three-phase versions.

  • Advanced circuit design minimizes unwanted tripping.

  • Compact design saves space in distribution panels.

  • Suitable for high-end commercial and industrial applications.

Applications of RCCB and RCBO

Where to Use RCCB?

  • Residential homes where overcurrent protection is separately handled by MCBs.

  • Office buildings with low electrical load and separate MCBs for overload protection.

  • These are areas where human safety is the primary concern rather than equipment safety.

Where to Use RCBO?

  • Industrial applications where machines require complete protection against earth leakage, overload, and short circuits.

  • Commercial buildings where different sections have individual power circuits.

  • Data centers and hospitals where circuit reliability is crucial and sudden power loss can have serious consequences.

Compare RCCB and RCBO: Which One to Choose?

  • The installation of MCBs makes an RCCB a financially attractive solution to provide electric shock prevention.

  • Total protective system advantages can only be achieved by using an RCBO because this device detects overcurrent, short circuits, and leakage currents.

  • The combination of safety and continuous power supply in the workplace drives industrial and commercial businesses to use RCBOs as their preferred choice.

Also Read:  Difference Between MCB, MCCB, DB, RCB, RCD, RCCB, RCBO, and ELCB Breakers

Conclusion: Choose the Right Electrical Safety Solution with SmartShop of Lauritz Knudsen Electrical & Automation

Electrical safety demands that you select between the RCCB and the RCBO in order to achieve protection. Investing in suitable electrical protection equipment serves to stop all harmful hazards while safeguarding equipment and preventing death-related incidents.

SmartShop of Lauritz Knudsen Electrical & Automation provides a diverse selection of RCCBs and RCBOs protecting electrical systems in addition to other protective safety solutions for customers. These safety products from the company provide durability and reliability together with superior safety compliance ratings to deliver the highest level of electrical protection.

Always consult an electrician or electrical expert to determine the best safety device for your electrical system. Stay safe and protected with the right circuit breakers!
