Electrical MCB – Miniature Circuit Breakers
An MCB, or Miniature Circuit Breaker, is an essential electrical safety device designed to automatically interrupt current flow in a circuit during abnormal conditions. These conditions can include overload, where too much current is drawn by appliances, or a short circuit, where current takes an unintended path due to a fault.
An MCB can also be called a tripper switch:
MCBs automatically interrupt the current flow (trips) when they detect an overload or short circuit. This prevents damage to the electrical circuit and potential fire hazards. Thus, acting as a tripper can be considered the core function of a Miniature Circuit Breaker.
Here's why MCBs are crucial for Modern Electricity Setups:
- Prevents fires: By cutting off power during overloads or short circuits, MCBs prevent electrical components from overheating and potentially igniting.
- Protects equipment: Excessive current can damage appliances and other electrical devices. MCBs act as a safeguard, preventing costly repairs or replacements.
- Limits fault damage: In a short circuit scenario, an MCB quickly isolates the faulty section, minimizing damage to the rest of the electrical system.
Benefits of buying Lauritz Knudsen (Formerly L&T Switchgear) Smart Electrical MCB Switches:
- Automatic operation: Unlike fuses that need replacing after a single trip, MCBs can be reset after the fault is rectified.
- Reusable: MCBs are built to last and can be reset numerous times, making them a cost-effective solution.
- Wide range of applications: MCBs come in various current ratings, suitable for domestic, commercial, and industrial electrical installations.
Features and Specifications:
Lauritz Knudsen (Formerly L&T Switchgear) MCBs are known for their variety and cater to diverse electrical applications. Here are some of the most common specifications offered by Lauritz Knudsen (Formerly L&T Switchgear) MCBs:
- Current Rating: This is a crucial specification that determines the amount of current an MCB can handle safely before tripping. Lauritz Knudsen (Formerly L&T Switchgear) MCBs typically range from low current ratings suitable for domestic applications (around 5 Amps) to high current ratings for industrial use (up to 100 Amps or more).
- Number of Poles: MCBs come in single pole, double pole, triple pole, and four-pole configurations. These poles represent the number of individual circuits an MCB can control. Single pole MCBs are common for single-phase circuits, while double (DP), triple (TP), and four-pole (FP) are used for three-phase applications.
- Breaking Capacity: This specifies the maximum amount of current an MCB can interrupt during a short circuit. Higher breaking capacity MCBs are suitable for applications with a higher risk of short circuits. Lauritz Knudsen (Formerly L&T Switchgear) MCBs offer a wide range of breaking capacities to suit various needs.
- Operating Voltage: Lauritz Knudsen (Formerly L&T Switchgear) MCBs cater to different voltage requirements. Common options include low voltage MCBs for domestic applications (130V AC) and medium voltage MCBs for industrial use (250V AC).
- In Line or DIN Rail Mounting: Lauritz Knudsen (Formerly L&T Switchgear) MCBs are available for both in-line screw fixing and DIN rail mounting mechanisms. In-line mounting is suitable for older installations, while DIN rail mounting is the modern standard for ease of installation and maintenance.
Additional Specifications:
Apart from the above, some Lauritz Knudsen (Formerly L&T Switchgear) MCBs may offer additional specifications like, C curve and D curve MCBs. These are named for their tripping characteristics under overload conditions.

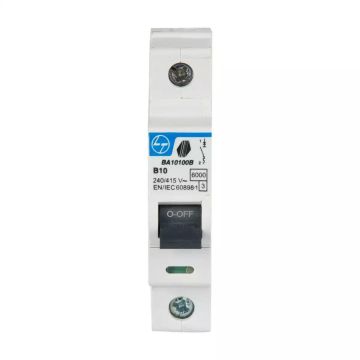

- B Curve MCBs: Designed for circuits with low inrush current. Inrush current is a temporary surge that occurs when certain devices like incandescent lights or basic appliances first turn on. B curve MCBs are ideal for these scenarios as they offer fast tripping under overload conditions. Tripping time for B curve MCBs under overload is generally between 0.04 to 0.1 seconds.

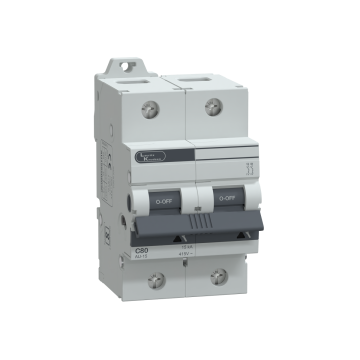

- C Curve MCBs: Designed for circuits with moderate inrush current on start-up. Inrush current is a temporary surge of current that occurs when certain devices like motors or transformers first turn on. Tripping time for C curve MCBs under overload is generally between 0.04 to 5 seconds.

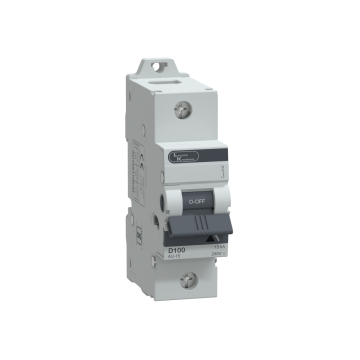

- D Curve MCBs: Designed for circuits with high inrush current on start-up. This is typical for large motors, X-ray machines, and other equipment with significant initial current surges. Tripping time for D curve MCBs under overload is generally between 0.04 to 3 seconds.
It's important to choose the right Lauritz Knudsen (Formerly L&T Switchgear) MCB based on your specific application's current rating, voltage requirements, and fault current levels. Consulting a qualified electrician can help ensure you select the appropriate MCB for your electrical safety needs.
Buy High-Quality MCB at the Best Price From Lauritz Knudsen (Formerly L&T Switchgear) Smartshop
Looking for high-quality, reliable miniature circuit breakers (MCBs) for your electrical needs? Look no further than Lauritz Knudsen (Formerly L&T Switchgear) Smartshop Online, your one-stop shop for Lauritz Knudsen (Formerly L&T Switchgear) MCBs in India.
Lauritz Knudsen (Formerly L&T Switchgear) MCBs are renowned for their superior safety features, durability, and wide range of applications. Whether you're a homeowner, electrician, or industrial contractor, Lauritz Knudsen (Formerly L&T Switchgear) Smartshop Online offers the perfect Lauritz Knudsen (Formerly L&T Switchgear) MCB solution to keep your electrical circuits safe and protected. Browse our extensive selection of Lauritz Knudsen (Formerly L&T Switchgear) MCBs and find the right fit for your requirements today!
Choose the Right MCB for Electrical Appliances
Selecting the right MCB for your electrical appliances and installations is crucial for ensuring safety and efficiency. Consider the type of load, the number of poles, and the trip characteristics (B curve, C curve, or D curve) when choosing your MCB. Our experts at Lauritz Knudsen (Formerly L&T Switchgear) Smartshop are always available to assist you in making the perfect choice for your specific needs.
Explore MCB Accessories at Lauritz Knudsen (Formerly L&T Switchgear) Smartshop
MCB accessory products are not essential for the core functionality of an MCB (miniature circuit breaker) but provide additional features or functionalities that can enhance safety, control, and overall efficiency in your electrical system. Here's a breakdown of some common MCB accessory products:
- Shunt Trip: This accessory allows for remote tripping of the MCB. A control signal is sent to the shunt trip, which then triggers the MCB to cut off power even if the overload or short circuit isn't detected at the MCB location itself. This can be useful for centralized control panels or emergency shutdown systems.
- Auxiliary Contact: This provides an electrical contact that reflects the state of the MCB (ON/OFF or tripped). This information can be used for various purposes, such as activating alarms or signaling control systems when the MCB trips.
- Alarm Contact: Similar to the auxiliary contact, this triggers an audible or visual alarm when the MCB trips, providing a local indication of a fault condition.
- Under/Overvoltage Release: This add-on module protects the circuit against voltage fluctuations outside the safe operating range. It can trip the MCB if the voltage goes too high (overvoltage) or too low (undervoltage), safeguarding equipment from damage.
- Busbar: This is a metal bar that allows for easy connection of multiple MCBs within a switchboard. It simplifies power distribution and saves space compared to individual wiring connections.
- Lock Off: This attachment secures the MCB in the OFF position, preventing accidental operation or unauthorized access. This can be useful during maintenance or repair work on the circuit.
Our modern electric MCB switches are designed to meet the rigorous demands of both home and commercial spaces, offering unparalleled durability and performance. With our MCBs, you're investing in peace of mind and continuous protection.
