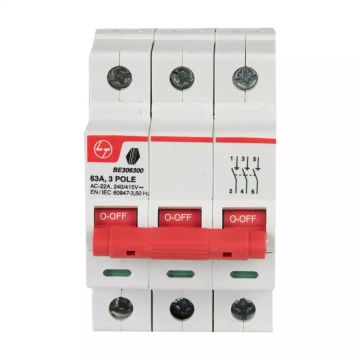

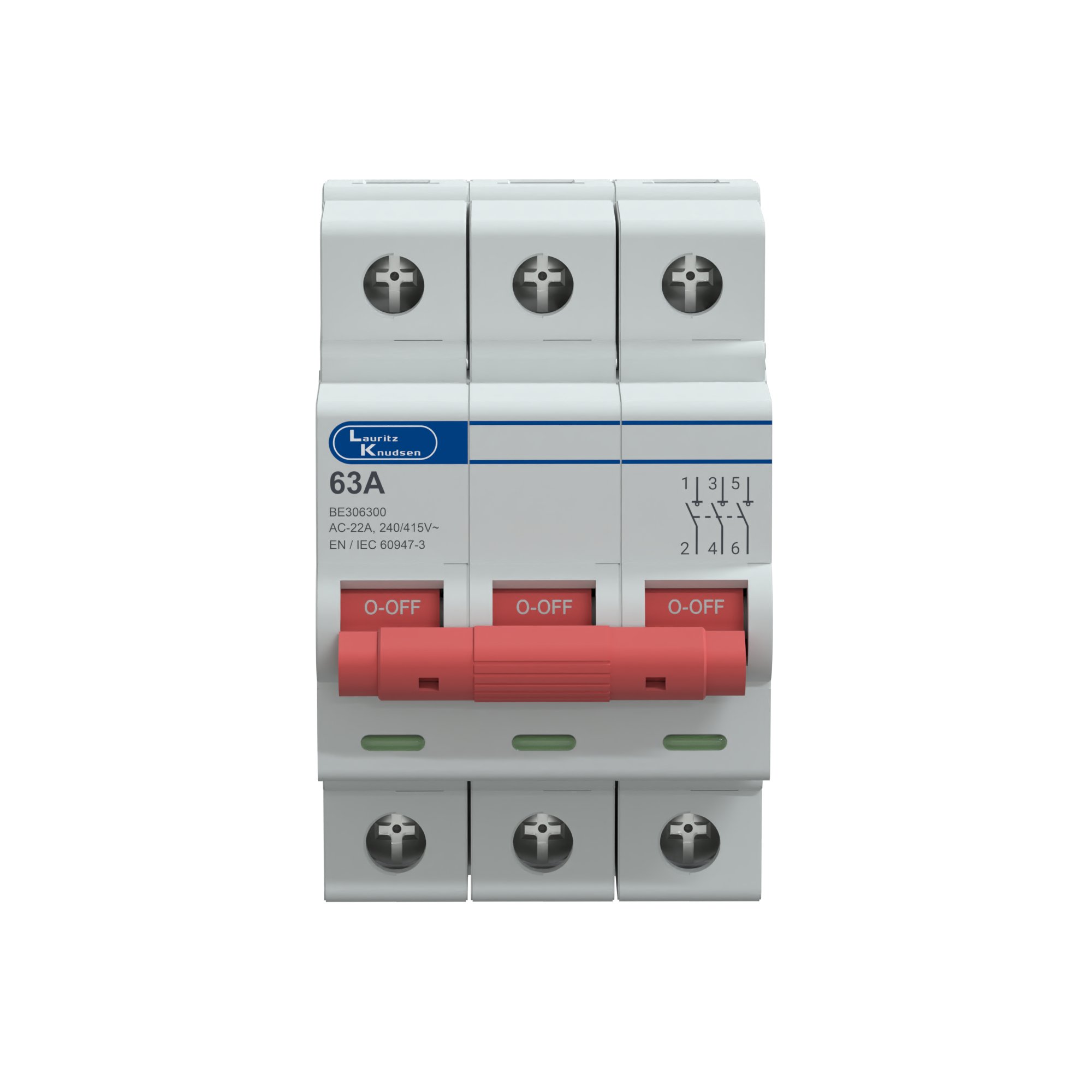

Lauritz Knudsen Isolator, 63A | 3 Pole | Higher Life | 415V AC | CE Marked
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper Isolator 63A TP 415V AC is a robust & reliable electrical isolation device designed for safe disconnection of three phase circuits. It is specifically used for maintenance, servicing, & operational control, allowing complete circuit isolation without providing overload or short circuit protection.
With a 63A current rating, this isolator is suitable for medium to high load applications including motors, distribution systems, & industrial equipment. The three pole (TP) configuration ensures simultaneous disconnection of all three phase conductors, delivering complete isolation & improved safety during operation & maintenance.
How the Isolator Work
The isolator operates as a manual switching device:
• Allows manual ON/OFF control of three phase circuits
• Disconnects all three phases simultaneously
• Provides safe isolation during maintenance or servicing
• Ensures no current flow when switched OFF
• Does not trip automatically (manual operation only)
Technical Specifications
• Rated current: 63A
• Poles: Three pole (TP – 3 phase)
• Rated voltage: 415V AC
• Function: Circuit isolation (manual switching)
• Protection: No overload or short circuit protection
• Application: Three phase circuit isolation
Construction & Design
The isolator is engineered for durability & reliable performance:
• Three pole design for complete phase isolation
• Compact modular construction
• DIN rail mountable for easy installation
• Smooth & firm switching mechanism
• High-quality materials for long service life
Safety & Protection
• Provides safe isolation of three phase circuits
• Ensures complete disconnection of all phases
• Prevents accidental energization during maintenance
• Enhances operational safety in electrical systems
• Must be used with MCB/RCBO for complete circuit protection
Mounting & Durability
• DIN rail mountable for quick & easy installation
• Suitable for distribution boards & control panels
• Compact design for efficient panel space utilization
• Long mechanical life
• Reliable under continuous medium to high load conditions
Application Areas
• Industrial electrical systems
• Commercial installations
• Three phase distribution boards
• Motor & machinery circuits
• Control panels & switchboards
Key Features
• 63A rated isolator for three phase applications
• Three pole (TP) configuration for full phase isolation
• Manual ON/OFF switching operation
• DIN rail mountable design
• Compact & durable construction
• Ensures safe & reliable circuit isolation
Applications
• Three phase circuit isolation
• Industrial maintenance & servicing
• Motor & machine isolation
• Distribution panel switching
• Commercial electrical installations
FAQs
1. What is a TP isolator?
Ans: A TP (Three Pole) isolator disconnects all three phase conductors simultaneously to ensure complete circuit isolation.
2. Does this isolator provide overload protection?
Ans: No, isolators are used only for manual isolation. Protection devices like MCBs or RCBOs are required separately.
3. Where is a 63A TP isolator used?
Ans: It is used in three phase systems such as motors, machinery circuits, & industrial distribution panels.
4. Can this isolator trip automatically?
Ans: No, it operates manually & does not have any automatic tripping mechanism.
5. Why is isolation important in three phase systems?
Ans: Isolation ensures safe maintenance & prevents accidental energization of equipment.
6. What is the difference between TP & DP isolator?
Ans: TP isolators disconnect three phases, while DP isolators disconnect phase & neutral in single-phase systems.
7. How is this isolator installed?
Ans: It is mounted on a DIN rail inside a distribution board or electrical panel.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -5°C to +50°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | TP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz |
| Rated Impulse Voltage | 4kV |
| Current Rating | 63A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IEC 60947-3 |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 52.5 |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
