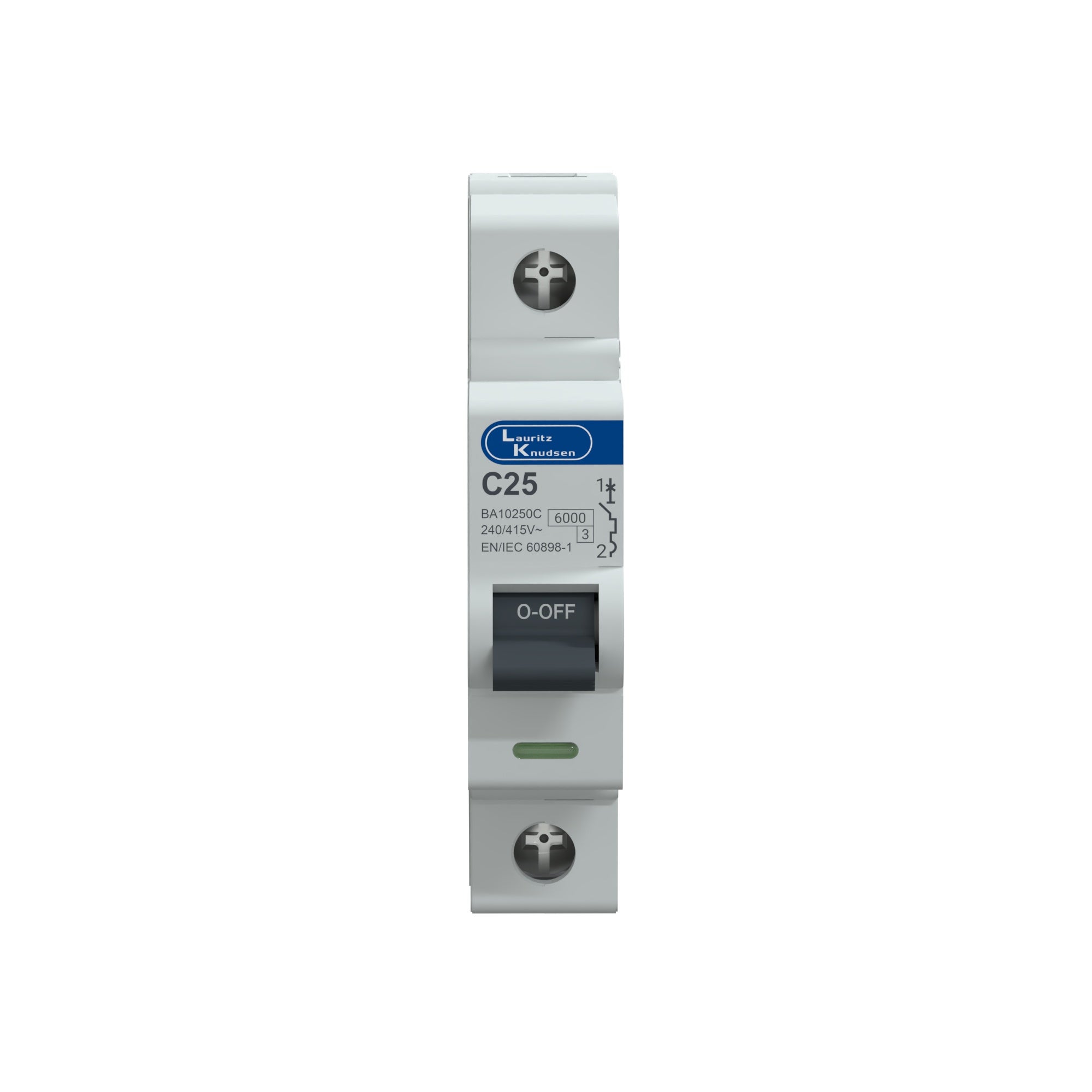

Lauritz Knudsen Tripper, MCB, C-Curve, 25A | 1 Pole | Energy Saving | Higher Life | 240V AC
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Tripper, MCB, C-Curve, 25A | 1 Pole | Energy Saving | Higher Life | 240V AC
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper MCB 25A SP 240V AC 6kA C Curve is a high-quality Miniature Circuit Breaker designed to protect electrical circuits from overloads & short circuit faults. It is ideal for residential & light commercial installations where medium current loads & inductive equipment are present.
With a 25A current rating & a 6kA breaking capacity, this MCB ensures safe & effective interruption of fault currents. The C Curve tripping characteristic makes it particularly suitable for circuits with moderate inrush currents such as motors, air conditioners, & other inductive appliances.
How the Mechanism Works
This MCB protects circuits through automatic operation & fault detection:
• Continuously monitors current flow in the circuit
• Trips during sustained overload conditions
• Instantly disconnects supply during short circuit faults
• Allows moderate inrush currents without unnecessary tripping
This ensures reliable operation & protection of connected devices.
Technical Specifications
• Rated current: 25A
• Poles: Single pole (SP)
• Rated voltage: 240V AC
• Breaking capacity: 6kA
• Tripping curve: C Curve
• Function: Overload & short circuit protection
• Application: Medium load circuits with inductive loads
Construction & Design
The MCB is engineered for durability & dependable performance:
• Compact modular design for DIN rail installation
• C Curve tripping optimized for moderate surge currents
• Efficient arc extinguishing mechanism
• High-quality components for reliable operation
• Designed for residential & light commercial use
Safety & Protection
• Protects against overload & short circuit faults
• Suitable for circuits with moderate inrush currents
• Prevents damage to cables & electrical equipment
• Enhances safety & reliability of the installation
• Ensures stable & secure circuit operation
Mounting & Durability
• DIN rail mountable for quick & easy installation
• Suitable for distribution boards
• Compact construction for efficient panel space usage
• Designed for long electrical & mechanical life
• Reliable under continuous & moderate load conditions
Application Areas
• Residential electrical systems
• Motor & air conditioning circuits
• Inductive appliance circuits
• Commercial installations
• Distribution boards
Key Features
• 25A rated MCB for medium load applications
• Single pole (SP) configuration
• 6kA breaking capacity
• C Curve for moderate inrush current loads
• Reliable overload & short circuit protection
• Compact DIN rail mountable design
• Durable & efficient construction
Applications
• Motor & compressor circuits
• Air conditioning systems
• Residential & commercial wiring
• Inductive load protection
• Electrical distribution boards
FAQs
1. What does C Curve mean in this MCB?
Ans: C Curve is suitable for circuits with moderate inrush currents such as motors & inductive loads.
2. Where is a 25A C Curve MCB used?
Ans: It is commonly used in circuits with air conditioners, motors, & medium load appliances.
3. What is the significance of 6kA breaking capacity?
Ans: It ensures the MCB can safely interrupt fault currents up to 6kA.
4. What does SP mean?
Ans: SP stands for single pole, protecting one phase conductor.
5. Does it protect against short circuits?
Ans: Yes, it provides protection against both overload & short circuit conditions.
6. How is this MCB installed?
Ans: It is mounted on a DIN rail inside a distribution board.
7. Why is this MCB important?
Ans: It ensures electrical safety by preventing damage to wiring & equipment while maintaining reliable circuit operation.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | SP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 6kA |
| Rated Impulse Voltage | 4kV |
| Current Rating | 25A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IS/IEC 60898-1 |
| Tripping Characteristic | C Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 17.5 |
Documents
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
