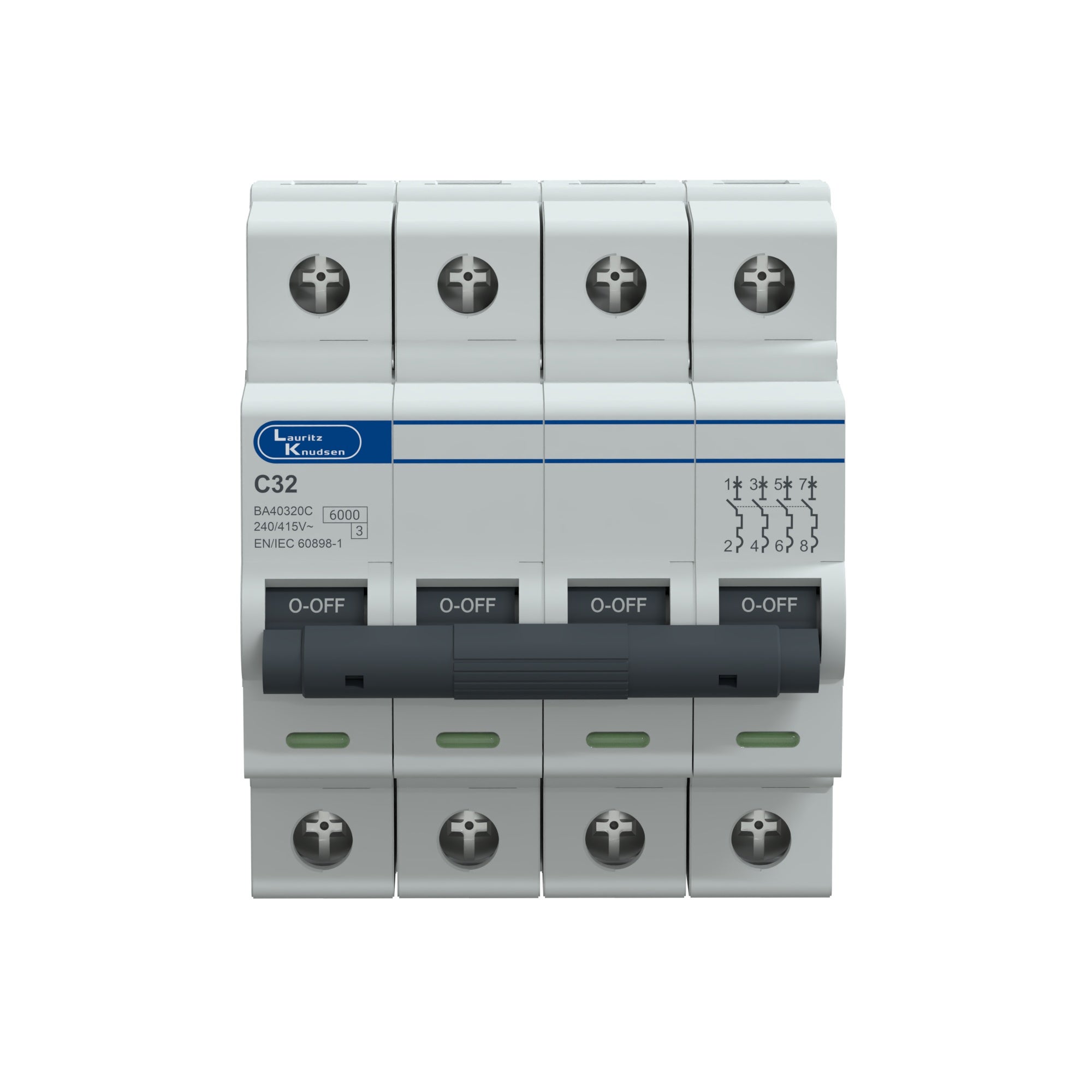

Lauritz Knudsen Tripper, MCB, C-Curve, 32A | 4 Pole | Energy Saving | Higher Life | 415V AC
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Tripper, MCB, C-Curve, 32A | 4 Pole | Energy Saving | Higher Life | 415V AC
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper MCB 32A FP 415V AC 6kA C Curve is a high-capacity Miniature Circuit Breaker engineered to provide effective protection for three phase electrical systems from overloads & short circuit faults. It is widely used in industrial & commercial applications where higher current loads & inductive equipment are present.
With a 32A current rating & a 6kA breaking capacity, this MCB ensures safe & efficient interruption of fault currents. The four pole (FP) configuration provides simultaneous disconnection of all three phases along with the neutral conductor, ensuring complete isolation & enhanced system safety. The C Curve tripping characteristic makes it ideal for circuits with moderate inrush currents such as motors, pumps, compressors, & HVAC systems.
How the Mechanism Works
This MCB provides reliable protection through continuous monitoring & automatic tripping:
• Continuously monitors current across all three phases & neutral
• Trips during sustained overload conditions
• Instantly disconnects supply during short circuit faults
• Allows moderate inrush currents without nuisance tripping
• Simultaneously isolates all phases & neutral
This ensures safe, stable, & efficient operation of three phase electrical systems.
Technical Specifications
• Rated current: 32A
• Poles: Four pole (FP – 3 phase + neutral)
• Rated voltage: 415V AC
• Breaking capacity: 6kA
• Tripping curve: C Curve
• Function: Overload & short circuit protection
• Application: High load three phase circuits with inductive loads
Construction & Design
The MCB is engineered for durability & consistent performance:
• Four pole design for complete phase & neutral isolation
• Compact modular construction suitable for DIN rail mounting
• C Curve tripping optimized for moderate surge current loads
• Efficient arc extinguishing mechanism
• High-quality internal components for reliable operation
Safety & Protection
• Protects against overload & short circuit faults
• Ensures simultaneous isolation of all phases & neutral
• Suitable for circuits with moderate inrush currents
• Prevents damage to wiring & connected equipment
• Enhances system safety & operational reliability
Mounting & Durability
• DIN rail mountable for quick installation
• Suitable for distribution boards & control panels
• Compact modular design for efficient panel layout
• Designed for long mechanical & electrical life
• Reliable under continuous high-load operation
Application Areas
• Industrial electrical systems
• Motor, pump, & compressor circuits
• HVAC & air conditioning systems
• Commercial electrical installations
• Three phase distribution boards
Key Features
• 32A rated MCB for high load applications
• Four pole (FP) configuration with neutral isolation
• 6kA breaking capacity
• C Curve for moderate inrush current circuits
• Reliable overload & short circuit protection
• Compact DIN rail mountable design
• Durable & long service life
Applications
• Motor & pump circuits
• HVAC & compressor systems
• Industrial & commercial wiring
• Inductive load protection
• Electrical distribution panels
FAQs
1. What does FP mean in this MCB?
Ans: FP (Four Pole) means the breaker disconnects all three phases & the neutral simultaneously.
2. What does C Curve indicate?
Ans: C Curve is suitable for circuits with moderate inrush currents such as motors, pumps, & compressors.
3. Where is a 32A FP MCB used?
Ans: It is commonly used in high load three phase circuits such as industrial panels, HVAC systems, & commercial installations.
4. What is the significance of 6kA breaking capacity?
Ans: It ensures safe interruption of fault currents up to 6kA.
5. Does it isolate the neutral conductor?
Ans: Yes, the four pole design ensures full isolation including the neutral.
6. How is this MCB installed?
Ans: It is installed on a DIN rail inside a distribution board or control panel.
7. Why use an FP MCB?
Ans: It ensures complete isolation of all phases & neutral, improving safety, system reliability, & operational control in three phase electrical systems.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | FP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 6kA |
| Rated Impulse Voltage | 4kV |
| Current Rating | 32A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IS/IEC 60898-1 |
| Tripping Characteristic | C Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 70 |
