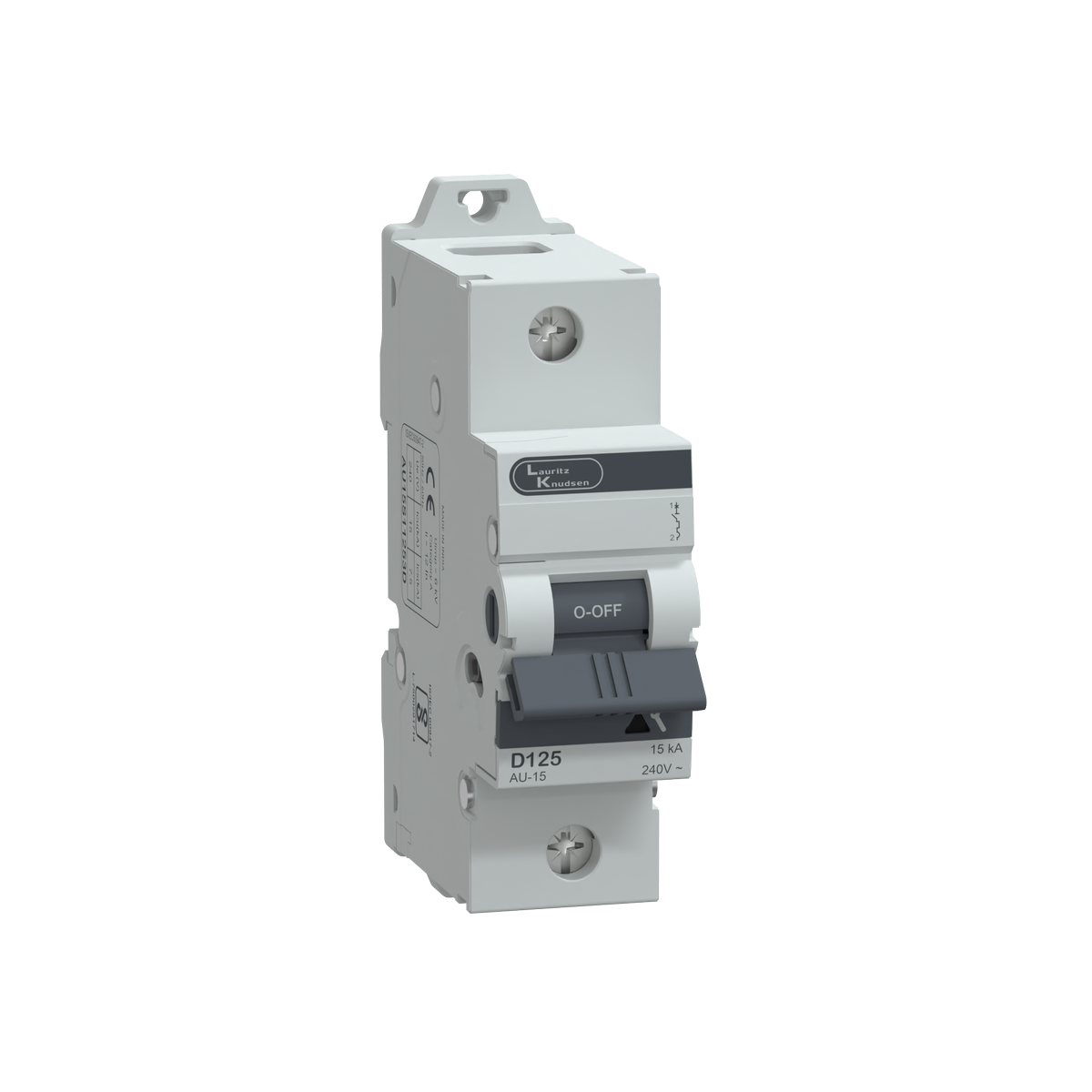

Lauritz Knudsen AU HR MCB, 1 Pole, D Curve, 15kA, 125A, 240V | Suitable for Isolation | Protection Degree - IP 20
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen AU HR MCB, 1 Pole, D Curve, 15kA, 125A, 240V | Suitable for Isolation | Protection Degree - IP 20
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The AU HR MCB 125A SP 240V AC 15kA D Curve is a high-capacity Miniature Circuit Breaker engineered to provide robust protection against overloads & short circuits in demanding electrical environments. It is ideal for industrial, commercial, & heavy-duty installations where very high starting currents are common.
With a 125A current rating & a high breaking capacity of 15kA, this MCB ensures safe interruption of fault currents under extreme conditions. The D Curve tripping characteristic makes it especially suitable for circuits with very high inrush currents such as motors, transformers, compressors, & heavy industrial equipment.
How the MCB Works
This MCB provides advanced protection through automatic monitoring & fast tripping response:
• Continuously monitors current flow in the circuit
• Trips during prolonged overload conditions
• Instantly disconnects the circuit during short circuit faults
• Allows high surge currents during startup without nuisance tripping
This ensures safe & efficient operation of high-demand electrical equipment.
Electrical Configuration
• Rated current: 125A
• Poles: Single pole (SP)
• Rated voltage: 240V AC
• Breaking capacity: 15kA
• Tripping curve: D Curve
• Function: Overload & short circuit protection
• Application: High inrush current circuits
Construction & Design
The MCB is designed for durability & high performance in demanding conditions:
• D Curve tripping optimized for high surge current applications
• High 15kA breaking capacity for extreme fault protection
• Compact modular design compatible with DIN rail mounting
• Advanced arc extinguishing system for safe operation
• Reliable & consistent tripping characteristics
Safety & Protection
• Protects against overload & short circuit faults
• Designed to handle high inrush currents without unnecessary tripping
• Prevents damage to electrical equipment & wiring
• Enhances reliability in heavy-duty applications
• Improves overall system safety & operational stability
Mounting & Durability
• DIN rail mountable for easy installation
• Suitable for distribution boards & industrial panels
• Compact modular construction
• Designed for long mechanical & electrical lifespan
• Reliable under continuous high-load & frequent operation
Application Domains
• Industrial electrical systems
• Motor & transformer circuits
• Heavy-duty machinery & equipment
• Commercial installations with high surge loads
• High current distribution systems
Key Features
• 125A rated MCB for very high load applications
• Single pole (SP) configuration
• 15kA high breaking capacity
• D Curve for high inrush current circuits
• Reliable overload & short circuit protection
• Compact DIN rail mountable design
• Durable & long service life
Applications
• Industrial motor circuits
• Transformer protection systems
• Heavy machinery installations
• Commercial electrical systems
• High inrush current equipment
FAQs
1. What does D Curve mean in this MCB?
Ans: D Curve indicates the breaker is suitable for circuits with very high inrush currents such as motors & transformers.
2. What is the importance of 15kA breaking capacity?
Ans: It ensures the MCB can safely interrupt high fault currents up to 15kA.
3. Where is a 125A D Curve MCB used?
Ans: It is used in heavy-duty applications like industrial motors, compressors, & transformer circuits.
4. Does this MCB protect against overload?
Ans: Yes, it provides protection against both overload & short circuit conditions.
5. What does SP mean?
Ans: SP stands for single pole, protecting one phase conductor in a circuit.
6. How is this MCB installed?
Ans: It is mounted on a DIN rail inside a distribution board or control panel.
7. Why use a D Curve MCB instead of C Curve?
Ans: D Curve is preferred for high surge loads as it prevents nuisance tripping while still ensuring strong protection.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +60° C |
| Electrical life (Operating Cylces) | 5,000 |
| Tightening Torque | 4Nm |
| Termination capacity | 70 Sq. mm (Rigid) 50 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 20,000 |
| No. of Poles | SP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 15kA |
| Rated Impulse Voltage | 6kV |
| Current Rating | 125A |
| Rated operational voltage (Ue) | 240V |
| Conformance to Standards | IEC 60947-2 |
| Tripping Characteristic | D Curve |
| Length(mm) | 77.5 |
| Height(mm) | 100.6 |
| Breadth(mm) | 26.3 |
Warranty
