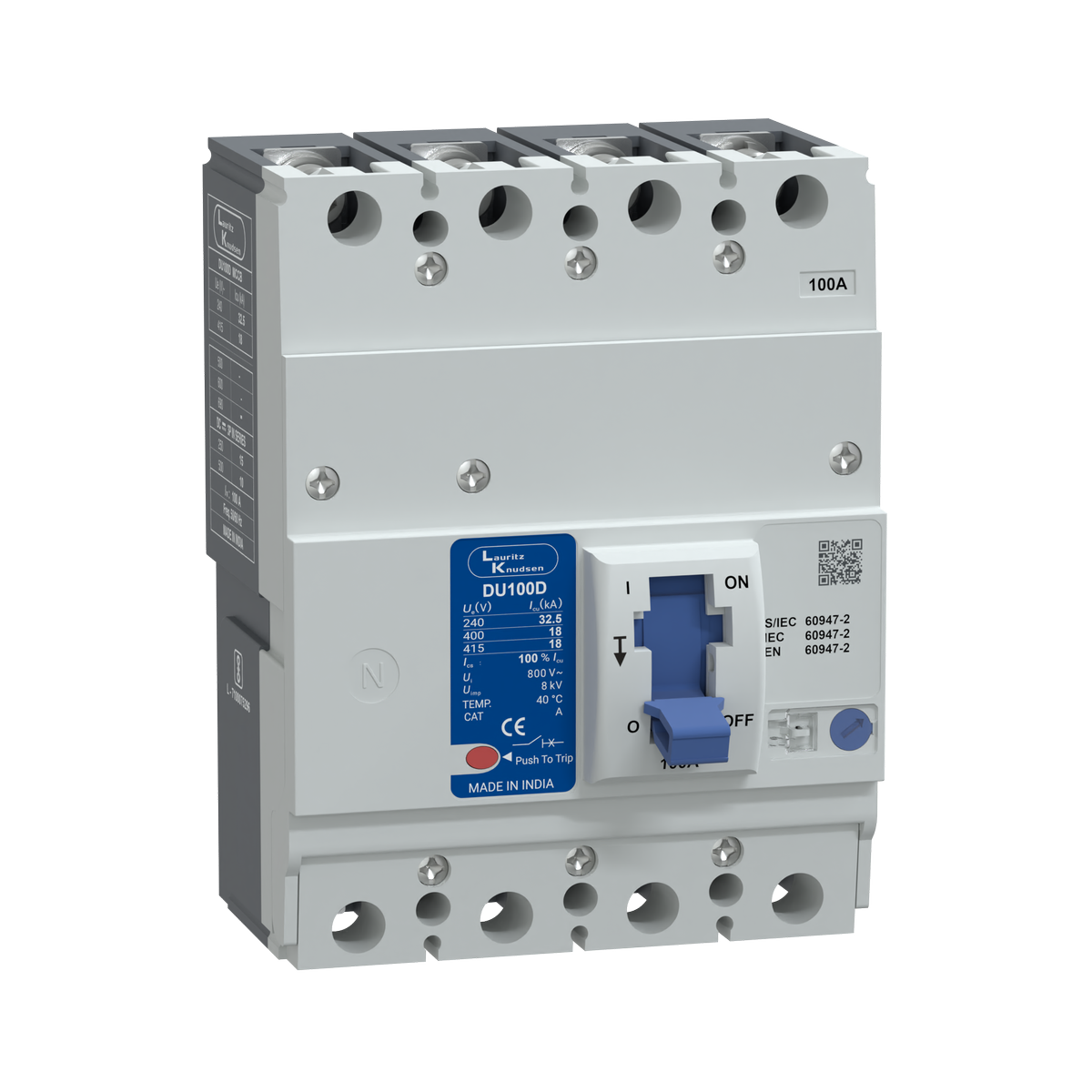

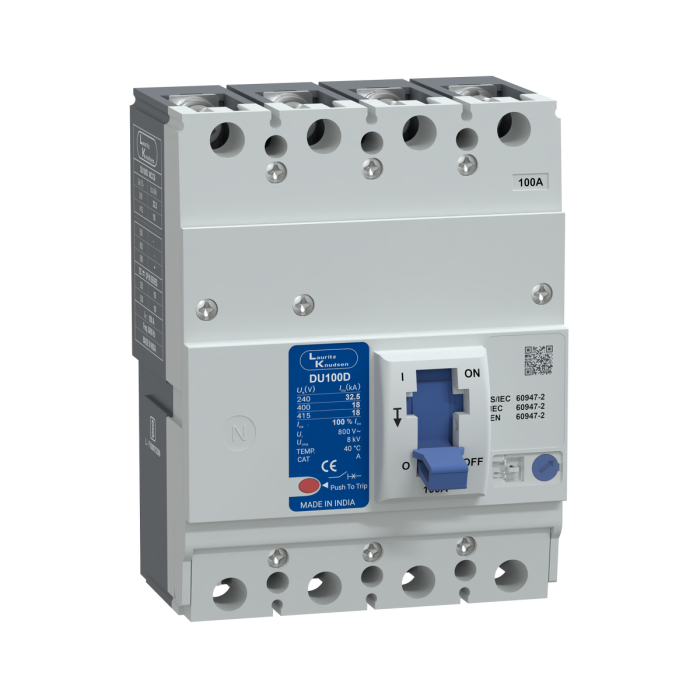

Lauritz Knudsen DU100D, MCCB, 4 Pole, 415V AC, 18kA Breaking Capacity, 100A | Thermal-Magnetic Release| 50/60 Hz | Compact Size | Ics=100% of Icu
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Lauritz Knudsen CM90518OOKO from the DU100D series is a reliable 4 Pole Moulded Case Circuit Breaker (MCCB) designed to provide efficient circuit protection, complete electrical isolation, & dependable performance for residential, commercial, & light industrial electrical installations. Rated at 100A & 415V AC, this MCCB safeguards electrical circuits, power distribution systems, & connected equipment against overloads & short-circuit faults while ensuring enhanced operational safety & long-term reliability.
The breaker incorporates an advanced thermal-magnetic trip mechanism that delivers dual-layer protection against electrical faults. The thermal protection element provides time-delayed tripping during overload conditions, helping prevent overheating & damage to cables, conductors, & connected equipment caused by sustained overcurrent situations. The magnetic protection element responds instantaneously to short-circuit faults, rapidly disconnecting the faulted circuit & minimizing the risk of electrical damage & operational interruptions.
The 4 Pole configuration includes a dedicated neutral pole, enabling complete isolation of all three phases along with the neutral conductor. This feature significantly improves electrical safety during maintenance procedures, servicing operations, emergency shutdowns, & fault conditions. Full phase & neutral isolation is particularly important in applications where complete electrical disconnection is required for personnel safety & equipment protection.
With a breaking capacity of 18kA, the DU100D MCCB is suitable for installations with low to medium fault levels. This fault interruption capability delivers dependable protection & stable operation while offering a cost-effective solution for standard electrical systems where higher fault interruption capacities are not necessary.
The MCCB is designed for operation on standard 50/60 Hz electrical systems, ensuring compatibility with a wide range of residential, commercial, & light industrial power distribution networks. Its compact & durable construction enables easy installation in distribution boards, switchgear panels, & motor control systems while maximizing panel space utilization.
Manufactured using high-quality insulating materials & precision-engineered operating components, the breaker provides reliable switching performance, excellent mechanical durability, & long service life. Its rugged design ensures dependable operation & long-term protection in everyday applications.
The DU100D series is widely preferred for applications requiring complete phase & neutral isolation, dependable protection, affordability, & consistent performance without the need for high fault interruption ratings.
How the Mechanism Works
The product functions by:
• Continuously monitoring electrical current flowing through all poles
• Detecting overload conditions using a thermal trip mechanism
• Providing delayed tripping during prolonged overcurrent situations
• Detecting short-circuit faults using a magnetic trip system
• Instantly disconnecting the circuit during fault conditions
• Protecting cables, conductors, & connected equipment from damage
• Isolating all phases & the neutral conductor simultaneously
• Preventing overheating caused by excessive current flow
• Improving electrical safety & system reliability
• Supporting stable power distribution performance
It serves as a critical protection & isolation device for low & medium-capacity electrical distribution systems.
Electrical Configuration
• Product Type: Moulded Case Circuit Breaker (MCCB)
• Model: CM90518OOKO
• Series: DU100D
• Pole Configuration: 4 Pole
• Rated Current: 100A
• Rated Voltage: 415V AC
• Frequency: 50/60 Hz
• Breaking Capacity: 18kA
• Trip Unit Type: Thermal Magnetic
• Neutral Pole: Included
• Mounting Type: Panel Mounted
• Primary Function: Overload, Short-Circuit Protection & Circuit Isolation
• Application: Power Distribution & Equipment Protection
Construction & Design
Designed for durability & dependable operation:
• Compact MCCB construction
• High-strength moulded insulating enclosure
• Precision-engineered operating mechanism
• Thermal-magnetic trip technology
• Four-pole switching architecture
• Integrated neutral pole design
• Durable contact system
• Efficient arc interruption chamber
• Industrial-grade insulation materials
• Long operational service life
Safety & Protection
• Reliable overload protection
• Instantaneous short-circuit protection
• Complete phase & neutral isolation
• 18kA fault interruption capability
• Enhanced electrical safety
• Improved equipment protection
• Reduced risk of electrical system damage
• Stable & dependable operation
• Reliable power distribution performance
• Cost-effective protection solution
Mounting & Durability
• Easy installation in electrical panels
• Suitable for switchboards & distribution boards
• Compact footprint for efficient panel integration
• Secure mounting arrangement
• Durable construction for everyday operation
• Designed for continuous-duty applications
• Resistant to electrical & mechanical stresses
• Reliable performance in commercial & light industrial environments
• Long operational lifespan
• Minimal maintenance requirements
Application Domains
• Residential Electrical Panels
• Commercial Buildings
• Light Industrial Installations
• Systems Requiring Full Isolation (Phase + Neutral)
• Distribution Boards
• Electrical Switchgear Systems
• Motor Control Systems
• Three-Phase Distribution Networks
• Utility Electrical Systems
• Low to Medium Load Applications
Key Features
• Rated current of 100A
• 4 Pole configuration for three-phase plus neutral systems
• Rated voltage of 415V AC
• Breaking capacity of 18kA
• Thermal-magnetic trip protection
• Reliable overload & short-circuit protection
• Neutral pole for complete circuit isolation
• Suitable for 50/60 Hz operation
• Compact & rugged design for panel installation
• Cost-effective protection solution for standard applications
• Reliable operation in low to medium fault-level systems
• Long service life & dependable performance
Applications
• Residential & commercial electrical distribution panels
• Light industrial installations
• Systems requiring full isolation (phase + neutral)
• Switchgear panels & control systems
• Equipment & machinery protection
• General-purpose power distribution
• Utility electrical systems
• Distribution board assemblies
• Electrical safety & isolation applications
• Three-phase power distribution systems
FAQs
1. What is the purpose of a 4 Pole MCCB?
Ans: It protects all three phases & includes a neutral pole for complete circuit isolation & enhanced operational safety.
2. What is the current rating of this MCCB?
Ans: The MCCB has a rated current of 100A.
3. What type of protection does it provide?
Ans: It provides thermal protection against overload conditions & magnetic protection against short-circuit faults.
4. What is the breaking capacity of this MCCB?
Ans: The breaker has a breaking capacity of 18kA for safe interruption of fault currents.
5. Why is neutral isolation important?
Ans: Neutral isolation ensures complete disconnection of the circuit, improving safety during maintenance, servicing, & fault conditions.
6. Where is this MCCB typically used?
Ans: It is commonly used in residential, commercial, & light industrial systems requiring complete phase & neutral isolation.
7. Is this MCCB suitable for three-phase systems with neutral connections?
Ans: Yes, the 4 Pole configuration is specifically designed for three-phase electrical systems that require full phase & neutral isolation.
8. What are the benefits of complete phase & neutral isolation?
Ans: Complete isolation improves personnel safety, supports maintenance activities, reduces fault risks, protects connected equipment, & enhances overall system reliability & operational safety.
Overview
| Rated Operational Current (A) | 100A |
|---|---|
| No. of Poles | 4P |
| Rated Operational voltage (Ue) | 415V AC |
| Rated Insulation Voltage Ui (V) | 800 V |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Operational Frequency (Hz) | 50/60 Hz |
| Release Type | Thermal Magnetic |
| Rated Short Circuit Breaking capacity Icu(kA) | 18KA |
| Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC | 100% |
| Ambient temperature | -5°C to 55°C |
| Conformance to Standards | IS 60947-2, IEC 60947-2 & EN 60947-2 |
| Suitable for isolation | Yes |
| Load-line bias | No |
| Electrical Life (Operating Cycles) | 8000 |
| Mechanical Life (Operating Cycles) | 40000 |
| IP Protection | IP40 |
| Pollution Degree | III |
| Width(mm) | 100 |
| Height(mm) | 130 |
| Depth(mm) | 60 |
| Discount Percentage | Between 0-10 % |
