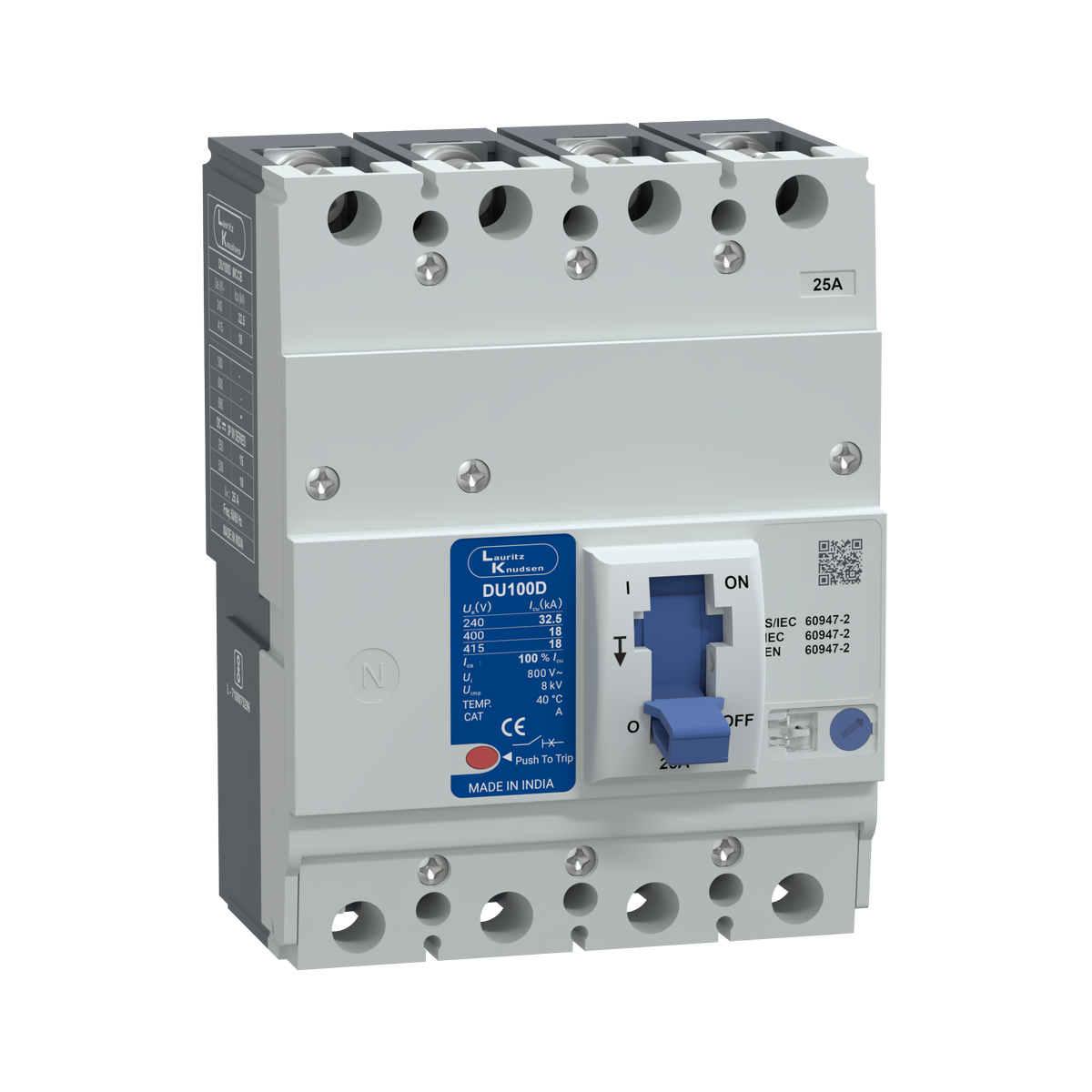

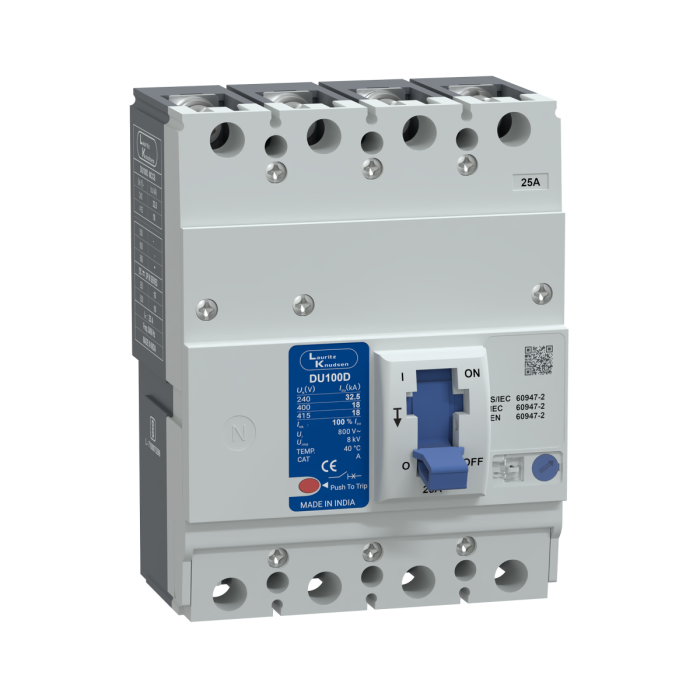

DU100D MCCB 25A 4P 415V AC 18KA Thermal Magnetic 50/60 Hz

In stock
SKU
CM90518OODO
Regular Price ₹6,340.00 Special Price ₹5,236.84
17% Off ( Prices are all inclusive of taxes )
Be the first to review this product
Add to Compare
DU100D MCCB 25A 4P 415V AC 18KA Thermal Magnetic 50/60 Hz

HSN Code - 85362020

The price of the product is indicative and is subject to change as per batch, revision in prices at the time of delivery. Please refer to the final landing price for your reference.

Note: L&T Switchgear Business is now Lauritz Knudsen Electrical & Automation.
Some products may still be labelled as L&T Switchgear Business until existing stock lasts. The quality and service you trust remain unchanged.

CHECK DELIVERY TIME & COD AVAILABILITY

  • The DU Series, a new generation of MCCBs, stands out due to its state-of-the-art design, contemporary user-friendly features, ergonomics, aesthetics and compactness.
  • DU Series complies with the latest standards like IS/IEC 60947-2, IEC 60947-2 & EN 60947-2.
  • The range is specially designed for tropical conditions, ensuring reliable performance at high ambient and humid environments.
  • The range can satisfy the most demanding system requirements.
  • The DU Series, having a wide range of accessories, ensures operational safety, reliability and versatility.
  • The products conform to international standards, carry CE marking.
Technical Specifications
  • Rated Operational Current (A)
    25A
  • No. of Poles
    4P
  • Rated Operational voltage (Ue)
    415V AC
  • Rated Insulation Voltage Ui (V)
    800 V
  • Rated impulse withstand voltage (Uimp)
    8 kV
  • Operational Frequency (Hz)
    50/60 Hz
  • Release Type
    Thermal Magnetic
  • Rated Short Circuit Breaking capacity Icu(kA)
    18KA
  • Rated Sevice circuit breaking capacity (Ics as % of Icu) @415VAC
    100%
  • Ambient temperature
    -5°C to 55°C
  • Conformance to Standards
    IS 60947-2, IEC 60947-2 & EN 60947-2
  • Suitable for isolation
    Yes
  • Load-line bias
    No
  • Electrical Life (Operating Cycles)
    8000
  • Mechanical Life (Operating Cycles)
    40000
  • IP Protection
    IP40
  • Pollution Degree
    III
  • Width(mm)
    100
  • Height(mm)
    130
  • Depth(mm)
    60
  • Discount Percentage
    Between 0-10 %
