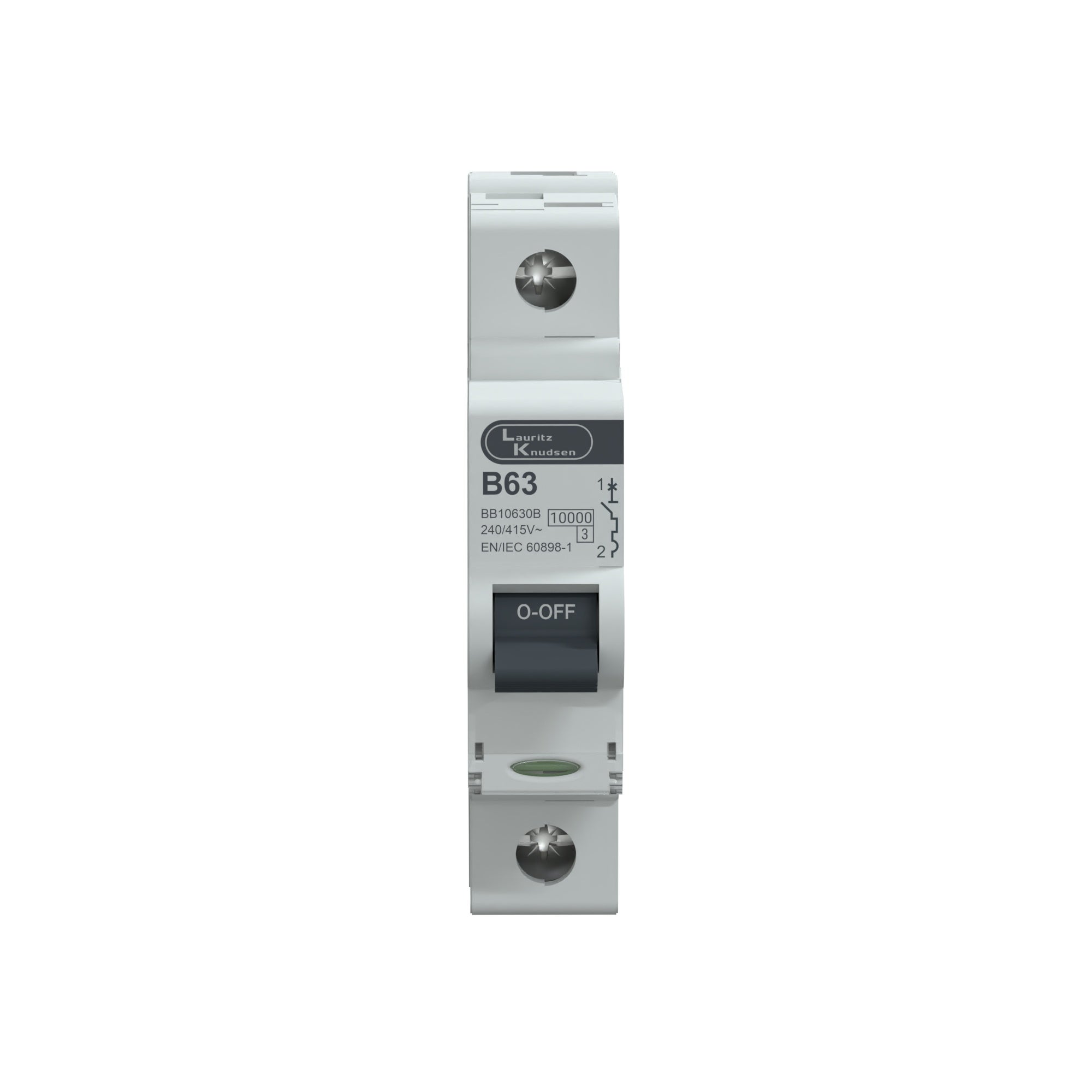

Lauritz Knudsen EXORA, MCB, 1 Pole, 240V AC, 10kA, B Curve, 63A
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen EXORA, MCB, 1 Pole, 240V AC, 10kA, B Curve, 63A
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
Exora MCB 63A SP 240V AC 10kA B Curve is a miniature circuit breaker designed to protect electrical circuits from overload & short circuit conditions. It is widely used in low voltage distribution systems for residential & commercial installations.
How the Mechanism Works
The MCB operates using a thermal magnetic mechanism. The thermal element responds to overload conditions by heating & bending, while the magnetic mechanism provides instantaneous tripping during short circuit faults, ensuring rapid disconnection.
Electrical Configuration
This is a single pole (SP) MCB rated at 63A current, suitable for 240V AC systems, with a 10kA breaking capacity. It features a B curve tripping characteristic, making it ideal for circuits with moderate inrush currents.
• Safety / protection aspects
• The MCB ensures safe operation by disconnecting the circuit during overload or short circuit conditions. It protects wiring, appliances, & electrical systems, significantly reducing the risk of electrical faults & fire hazards.
Construction & Design
A compact insulating body integrates the operating mechanism, contacts, arc-control components, terminals, & trip elements for reliable circuit protection.
Safety & Protection
Provides circuit isolation & overcurrent protection when correctly selected, coordinated, installed, & operated within its published ratings.
Mounting & Durability
Designed for standard DIN rail mounting, the breaker ensures quick & easy installation in distribution boards. Its robust construction provides durability & long-lasting performance even under high-load conditions.
Application Domains
Suitable for high-load residential & commercial applications such as main power circuits, distribution lines, air conditioning systems, & heavy electrical loads.
Key Features
• Rated current: 63A
• Single pole (SP) configuration
• Rated voltage: 240V AC
• Breaking capacity: 10kA
• B curve tripping characteristic
• Thermal magnetic protection mechanism
• DIN rail mounting compatible
• Heavy-duty & durable design
Applications
• Residential distribution boards
• Main power circuits
• High-load appliances
• Commercial electrical panels
• Low-voltage power distribution systems
FAQs
1. What is an MCB used for?
Ans: It protects electrical circuits from overloads & short circuits.
2. What does 63A rating indicate?
Ans: It indicates the MCB can safely handle circuits up to 63 amperes.
3. What is B curve in an MCB?
Ans: B curve is suitable for residential & general-purpose circuits with moderate inrush current.
4. What is 10kA breaking capacity?
Ans: It is the maximum fault current the MCB can safely interrupt.
5. Is it suitable for home use?
Ans: Yes, especially for main circuits or high-load applications.
6. How is it installed?
Ans: It is mounted on standard DIN rails inside distribution boards.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70° C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | SP |
| Conformance to standards | IS/IEC 60898-1 |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 10kA as per IS/IEC 60898-1 |
| Rated Impulse Voltage | 4kV |
| Current Rating | 63A |
| Rated Operational voltage (Ue) | 240V |
| Conformance to Standards | IS/IEC 60898-1 |
| Tripping Characteristic | B Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 17.5 |
Warranty
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
