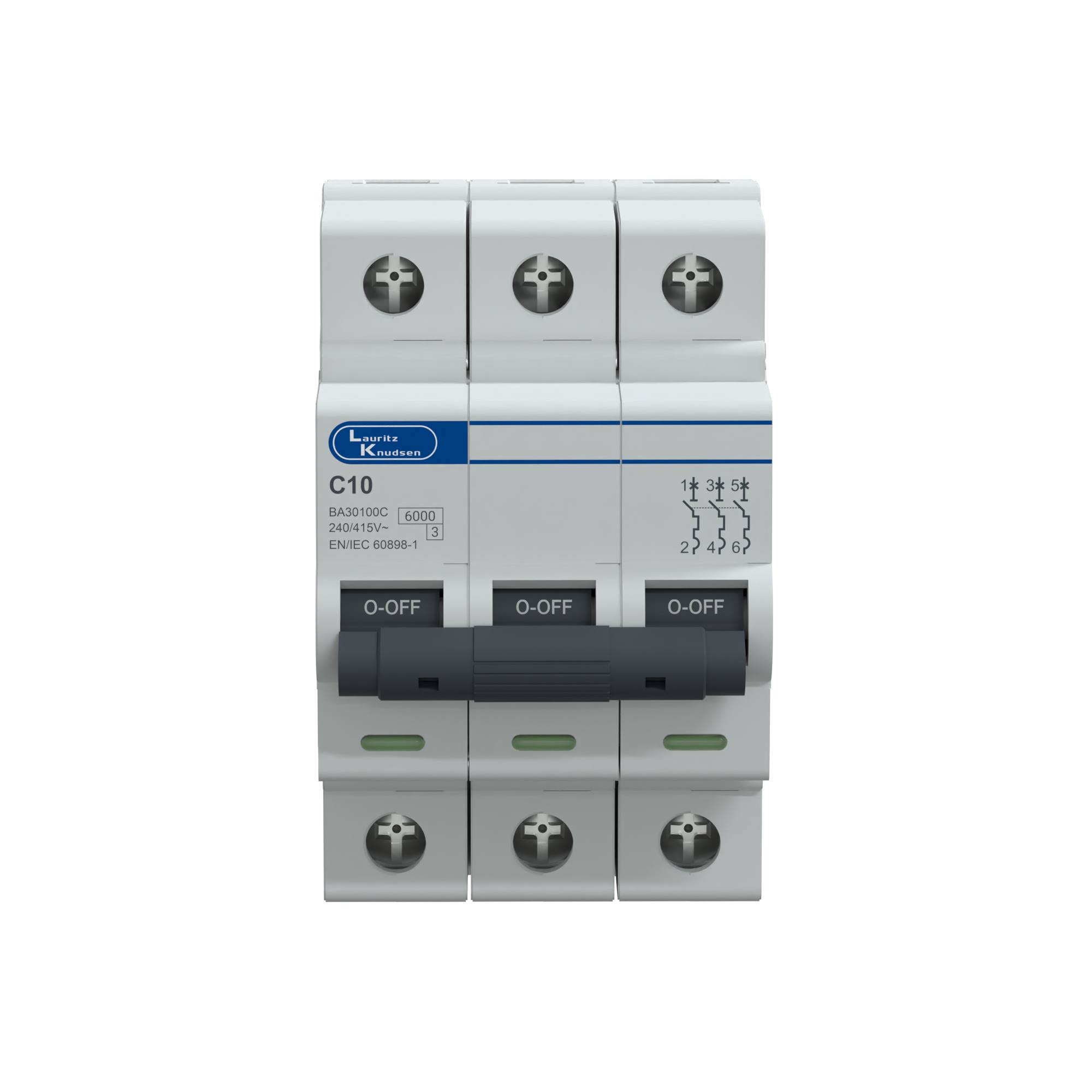

Lauritz Knudsen Tripper, MCB, C-Curve, 10A | 3 Pole | Energy Saving | Higher Life | 415V AC
Images:
Image 360:
How to video:
Further offers for this product
Incl. Tax
In Stock
No sellers found for this product.
Incl. Tax
Lauritz Knudsen Tripper, MCB, C-Curve, 10A | 3 Pole | Energy Saving | Higher Life | 415V AC
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
About the Product
The Tripper MCB 10A TP 415V AC 6kA C Curve is a compact & efficient Miniature Circuit Breaker designed to provide protection against overload & short circuit faults in three phase electrical systems. It is ideal for industrial, commercial, & light-duty applications where moderate current loads & inductive equipment are present.
With a 10A current rating & a 6kA breaking capacity, this MCB ensures safe & efficient interruption of fault currents. The triple pole (TP) configuration enables simultaneous protection & isolation of all three phases, ensuring balanced & reliable system protection. The C Curve tripping characteristic makes it suitable for circuits with moderate inrush currents such as small motors, pumps, & inductive loads.
How the Mechanism Works
This MCB ensures circuit protection through automatic & responsive operation:
• Continuously monitors current across all three phases
• Trips during sustained overload conditions
• Instantly disconnects supply during short circuit faults
• Allows moderate inrush currents without nuisance tripping
• Simultaneously isolates all three phases
This guarantees safe & stable operation of three phase electrical systems.
Technical Specifications
• Rated current: 10A
• Poles: Triple pole (TP)
• Rated voltage: 415V AC
• Breaking capacity: 6kA
• Tripping curve: C Curve
• Function: Overload & short circuit protection
• Application: Low to moderate load three phase circuits with inductive loads
Construction & Design
The MCB is engineered for durability & consistent performance:
• Triple pole design for complete three phase protection
• Compact modular construction suitable for DIN rail mounting
• C Curve tripping optimized for moderate surge currents
• Efficient arc extinguishing mechanism
• High-quality internal components for reliable operation
Safety & Protection
• Protects against overload & short circuit faults
• Ensures simultaneous disconnection of all three phases
• Suitable for circuits with moderate inrush currents
• Prevents damage to wiring & connected equipment
• Enhances system safety & reliability
Mounting & Durability
• DIN rail mountable for easy installation
• Suitable for distribution boards & control panels
• Compact modular construction for efficient space usage
• Designed for long electrical & mechanical life
• Reliable under continuous operation
Application Areas
• Industrial electrical systems
• Small motor & pump circuits
• Three phase distribution boards
• Commercial installations
• Control panels & machinery circuits
Key Features
• 10A rated MCB for three phase applications
• Triple pole (TP) configuration
• 6kA breaking capacity
• C Curve for moderate inrush current circuits
• Reliable overload & short circuit protection
• Compact DIN rail mountable design
• Durable & long service life
Applications
• Small three phase motor circuits
• Pump & compressor systems
• Industrial & commercial distribution
• Inductive load protection
• Electrical panels & control systems
FAQs
1. What does TP mean in this MCB?
Ans: TP (Triple Pole) means the breaker protects & disconnects all three phases simultaneously.
2. What does C Curve indicate?
Ans: C Curve is suitable for circuits with moderate inrush currents such as motors, pumps, & inductive loads.
3. Where is a 10A TP MCB used?
Ans: It is used in low to moderate load three phase circuits such as small motors & industrial control systems.
4. What is the importance of 6kA breaking capacity?
Ans: It ensures safe interruption of fault currents up to 6kA.
5. Does it protect all three phases?
Ans: Yes, it provides protection & isolation for all three phases simultaneously.
6. How is this MCB installed?
Ans: It is installed on a DIN rail inside a distribution board or control panel.
7. Why use a TP MCB?
Ans: A TP MCB ensures balanced protection & simultaneous disconnection of all three phases, improving system safety & reliability.
Overview
| Discount Percentage | Between 0-10 % |
|---|---|
| Operating Temperature Range | -25°C to +70°C |
| Electrical life (Operating Cylces) | 10000 |
| Tightening Torque | 4Nm |
| Termination capacity | 35 Sq. mm (Rigid) 25 Sq. mm (Flexible) |
| Mechanical Life (Operating Cycles) | 100000 |
| No. of Poles | TP |
| Rated Insulation Voltage Ui (V) | 500V |
| Rated Frequency | 50Hz/60Hz |
| Rated Short-circuit Breaking Capacity | 6kA |
| Rated Impulse Voltage | 4kV |
| Current Rating | 10A |
| Rated operational voltage (Ue) | 415V |
| Conformance to Standards | IS/IEC 60898-1 |
| Tripping Characteristic | C Curve |
| Length(mm) | 74.5 |
| Height(mm) | 87.3 |
| Breadth(mm) | 52.5 |
