Understanding the Voltage Monitoring Relay: Key Functions and Applications

Electricity is the backbone of modern life. It powers everything from homes to industries. However, ensuring a consistent and safe supply of electricity is essential. This is where voltage monitoring relays come into play. These devices act as silent sentinels. They monitor voltage levels and protect equipment from potential damage caused by voltage fluctuations. This blog unpacks the basics of voltage monitoring relays. It will also highlight their essential functions, types, and applications. The blog will also offer knowledge on the best options available in the market.

What Is a Voltage Monitoring Relay?

A voltage monitoring relay is an electrical device. It is designed to monitor the voltage in an electrical system. This device ensures the voltage remains within a predefined range. The relay acts by triggering an alarm or disconnecting the circuit. This prevents damage when the voltage exceeds or drops below the set limits.

These relays protect electrical equipment. These include motors, compressors, and control systems. Relays offer protection from under-voltage, over-voltage, or phase imbalances. Different models, such as the digital voltage monitoring relay, offer advanced features. Hence, they are suitable for a range of applications.

Voltage Monitoring Relay Functions

The primary voltage monitoring relay function is to monitor voltage levels in real-time and act swiftly in case of anomalies. Here are some of the key functions:

1. 1. Under-Voltage Protection: It disconnects the load when the voltage drops below a safe threshold. This prevents equipment damage.

2. 2. Over-Voltage Protection: Relays prevent equipment failure. They do so by isolating the circuit during high-voltage conditions.

3. 3. Phase Monitoring: Relays ensure balance for all phases. They also ensure their correct functioning in a 3-phase system.

4. 4. Load Protection: It maintains the longevity of equipment by preventing exposure to harmful electrical conditions.

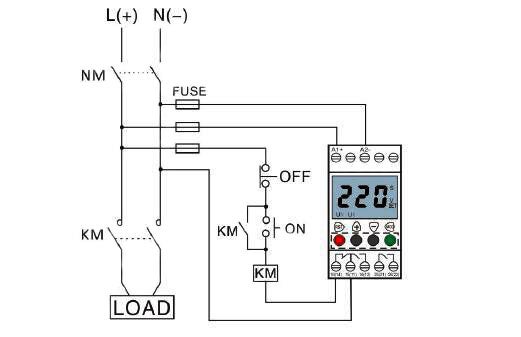

How Does a Voltage Monitoring Relay Work?

The voltage monitoring relay working principle is straightforward. The relay continuously measures the voltage of the system. It uses its sensing mechanism for this. The relay triggers an output action when the voltage deviates from the preset range. These actions include cutting off the power supply or activating an alarm.

For example, the device monitors a single phase of the electrical system in a single-phase voltage monitoring relay. This makes it ideal for residential or small-scale applications. In contrast, a 3-phase voltage monitoring relay is designed for industrial and commercial setups. It ensures that all three phases operate harmoniously.

Types of Voltage Monitoring Relays

Voltage monitoring relays come in various types. Each type caters to specific needs:

1. Single-Phase Voltage Monitoring Relay

• Used in homes and small offices.

• Protects devices like air conditioners and computers.

• Monitors a single electrical phase for voltage stability.

2. 3-Phase Voltage Monitoring Relay

• Essential in industries and large commercial spaces.

• Ensures balance across all three phases.

• Prevents phase loss, reverse phase, and imbalance issues.

3. Low Voltage Monitoring Relay

• Specialized for detecting and managing low-voltage conditions.

• Commonly used in battery-operated systems or renewable energy setups.

4. Digital Voltage Monitoring Relay

• Offers advanced features like precise digital readouts, programmable settings, and remote monitoring.

• These are ideal for modern applications where accuracy and flexibility are crucial.

Applications of Voltage Monitoring Relays

The versatility of voltage monitoring relays makes them suitable for the following applications.

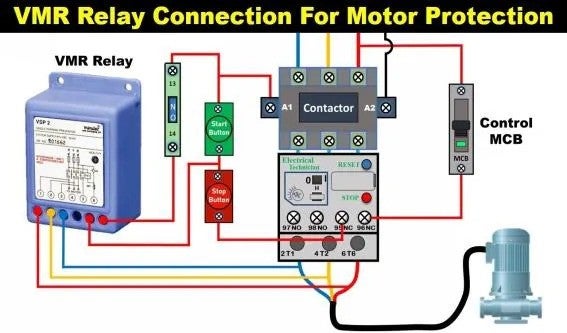

1. Industrial Machinery

Voltage monitoring relays protect heavy machinery from damage. They prevent them from voltage spikes or dips. These relays ensure the smooth operation of motors, pumps, and compressors.

2. Power Grids

These relays play a vital role in maintaining the stability of power distribution systems. They monitor voltage levels across substations.

3. Renewable Energy Systems

In systems like solar panels or wind turbines, voltage monitoring relays help manage fluctuating power outputs to ensure a consistent energy supply.

4. HVAC Systems

Heating and air conditioning systems often rely on voltage monitoring relays. These relays protect sensitive electronic components.

Why Choose Lauritz Knudsen Electrical & Automation Voltage Monitoring Relays?

Lauritz Knudsen Electrical & Automation voltage monitoring relays are among the top choices. They offer impeccable reliability and performance. These devices are known for their robust build and advanced technology. Professionals trust them in various industries. Lauritz Knudsen Electrical & Automation offers a wide range of models. This includes digital, single-phase, and 3-phase voltage monitoring relays catering to different requirements.

Our relays are designed with precision. They ensure accurate voltage monitoring and rapid response during fluctuations. Moreover, they are known for their durability. Hence, they are a cost-effective choice in the long run.

Factors to Consider When Buying a Voltage Monitoring Relay

Here are some factors to keep in mind when shopping for voltage monitoring relays.

1. 1. Type of Relay: Determine whether you need a single-phase voltage monitoring relay or a 3-phase voltage monitoring relay. For this, consider your application.

2. 2. Digital Features: Opt for a digital voltage monitoring relay if you require advanced functionalities. These have features like programmable settings and remote monitoring.

3. 3. Voltage Range: Ensure the relay can handle the voltage levels in your electrical system.

4. 4. Price: Compare the voltage monitoring relay price across different brands to find the best value for your budget.

5. 5. Brand Reputation: Go for reliable brands like Lauritz Knudsen Electrical & Automation. Our brand is known for quality and after-sales support.

Benefits of Using Voltage Monitoring Relays

Investing in a voltage monitoring relay offers numerous benefits:

• Equipment Protection: It safeguards expensive equipment from damage caused by voltage irregularities.

• Enhanced Safety: These relays prevent electrical hazards. They ensure a safe working environment.

• Energy Efficiency: They help maintain optimal power usage. These relays avoid unnecessary energy loss during fluctuations.

• Cost Savings: They reduce downtime and repair costs associated with damaged equipment.

Voltage Monitoring Relay Price: What to Expect

The voltage monitoring relay price varies depending on the type, features, and brand. Primary single-phase relays are generally more affordable, while advanced digital voltage monitoring relays with sophisticated features may cost more. However, the investment is worth it, considering the protection and efficiency these devices offer.

Where to Buy the Best Voltage Monitoring Relays?

Visit the SmartShop of Lauritz Knudsen Electrical & Automation for a comprehensive range of high-quality voltage monitoring relays. We offer a wide selection of relays. This includes Lauritz Knudsen Electrical & Automation voltage monitoring relays at competitive prices. Our SmartShop has you covered when looking for a single-phase voltage monitoring relay, a 3-phase voltage monitoring relay, or a digital voltage monitoring relay.

The products at our SmartShop are designed to meet the highest standards. They ensure safety and reliability. Also, their performance is commendable. Moreover, our knowledgeable team can help you select the perfect relay.

Also Read: What is a Relay Module: Types, Uses & How Does It Work?

Conclusion

Voltage monitoring relays are indispensable in electrical systems. They offer protection from unpredictable power fluctuations. These devices ensure smooth and uninterrupted operations. Brands like Lauritz Knudsen Electrical & Automation offer reliable solutions. We combine advanced features with robust performance.

The SmartShop of Lauritz Knudsen Electrical & Automation provides an excellent selection of high-quality voltage monitoring relays. So, you can shop from us when looking for a low-voltage monitoring relay or a cutting-edge digital voltage monitoring relay. We have the expertise to meet your needs with the best products.
