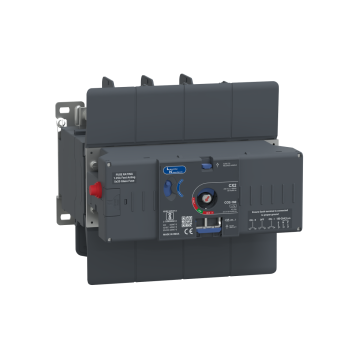

Lauritz Knudsen Automatic Transfer Switch, C-Line, 160A, 415V AC | Frame 2 | 4 Pole | Suitable for Aluminum Termination| Smart Control Mechanism
SKU :
CK90162BSOO
Unfortunately this product is not available at this moment
Notify me when this product is available
Loading...
Further offers for this product
CK90162BSOO
Lauritz Knudsen Automatic Transfer Switch, C-Line, 160A, 415V AC | Frame 2 | 4 Pole | Suitable for Aluminum Termination| Smart Control Mechanism
Further Offers for this product:
Shipping options & Estimated costs
Delivery by 5-7 business day
Incl. Tax
Free shipping on orders above ₹1000
In Stock
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Shipping options
Delivery by 5-7 business day
No sellers found for this product.
₹98,960.00
₹93,418.24
Incl. Tax
To View the best prices please Log In / Register
Estimated delivery:
Backorder
A backorder means the item you want is currently not in stock, but we’re still allowing you to place an order for it. we will ship it to you within the estimated shipping time.
Estimated delivery:
Out of stock
Lauritz Knudsen Automatic Transfer Switch, C-Line, 160A, 415V AC | Frame 2 | 4 Pole | Suitable for Aluminum Termination| Smart Control Mechanism
₹98,960.00
₹93,418.24
- Description
- Specifications
- Documents
- Warranty
- Reviews
Description
- Lauritz Knudsen Changeover Switch is electrical switchgear which switches a load between two power sources.
- Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
- Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
- Patented dual-dead center interlocking mechanism
- Staggered temirnation for ease of termination/inspection
Overview
| Rated Operational Current (A) | 160 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 IS/IEC 60947-6-1, EN 60947-6-1 |
| Utilization Category | AC-23A, AC-32B |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 16000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 8 |
| Rated Operational Power (kW) | 85 |
| Rated Breaking Capacity@AC-23A (A) | 1280 |
| Rated Making Capacity@AC-23A (A) | 1600 |
| Version | ATS, SS enclosure |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 16000 |
| Maximum Al termination (sq.mm) | 95 |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
| Discount Percentage | Between 0-10 % |
Documents
Warranty
1. All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
View All
- All products listed in the price list are covered by a warranty against manufacturing defects for a period of 18* months from the date of purchase.
- For Lauritz Knudsen MCBs & Isolators mounted inside Lauritz Knudsen Distribution Boards, an extended warranty of 5 years is provided.
- In the event of a defect due to faulty workmanship or other associated reasons, the manufacturer will, at its discretion, remedy the defect or replace the faulty parts or the entire product as soon as possible, free of cost.
- This warranty is subject to proper usage and efficient maintenance and does not cover defects arising from fire, accidents, inefficient maintenance, faulty operation, or deliberate or accidental damage.
- The warranty does not cover damage to power electronic components such as thyristors & IGBTs, which primarily fail due to over-temperature or over-voltage. Users must take adequate precautions to eliminate such conditions.
- The manufacturer shall not be responsible or liable for any special, incidental, social, or consequential losses (including loss of profits), punitive damages, injury, or damages of any kind solely attributable to defect or failure of its products.
- The manufacturer shall not be liable in any manner for issues related to or failure in the performance of any other equipment to which the product is connected.
Reviews
Write Your Own Review
Only registered users can write reviews. Please Sign in or create an account
Description
- Lauritz Knudsen Changeover Switch is electrical switchgear which switches a load between two power sources.
- Available in variety of options such as Manual open execution, Manual SS enclosure, Motorised & Enclosed ATS, C-line Changeover is one stop solution for all your power transfer needs.
- Loaded with safety features such as Terminal Shrouds, Source Separator & Phase Barriers
- Patented dual-dead center interlocking mechanism
- Staggered temirnation for ease of termination/inspection
Overview
| Rated Operational Current (A) | 160 |
|---|---|
| Conformance to Standards | IS/IEC 60947-3, EN 60947-3 IS/IEC 60947-6-1, EN 60947-6-1 |
| Utilization Category | AC-23A, AC-32B |
| Rated operational voltage (Ue) | 415V |
| Operating Frequency(Hz) | 50/60 |
| Mechanical Life (No. of operating cycles) | 16000 |
| Rated Insulation Voltage Ui (V) | 1000 |
| Short Time Withstand for 1sec (kA) | 8 |
| Rated Operational Power (kW) | 85 |
| Rated Breaking Capacity@AC-23A (A) | 1280 |
| Rated Making Capacity@AC-23A (A) | 1600 |
| Version | ATS, SS enclosure |
| No. of Poles | 4P |
| Electrical life (Operating Cylces) | 2000 |
| Mechanical Life (Operating Cycles) | 16000 |
| Maximum Al termination (sq.mm) | 95 |
| Standard Accessories | Terminal Shroud,Phase Barriers,Source Separator, Extended handle with shaft |
| Pollution Degree | 3 |
| Rated impulse withstand voltage (Uimp) | 12 |
| Discount Percentage | Between 0-10 % |
